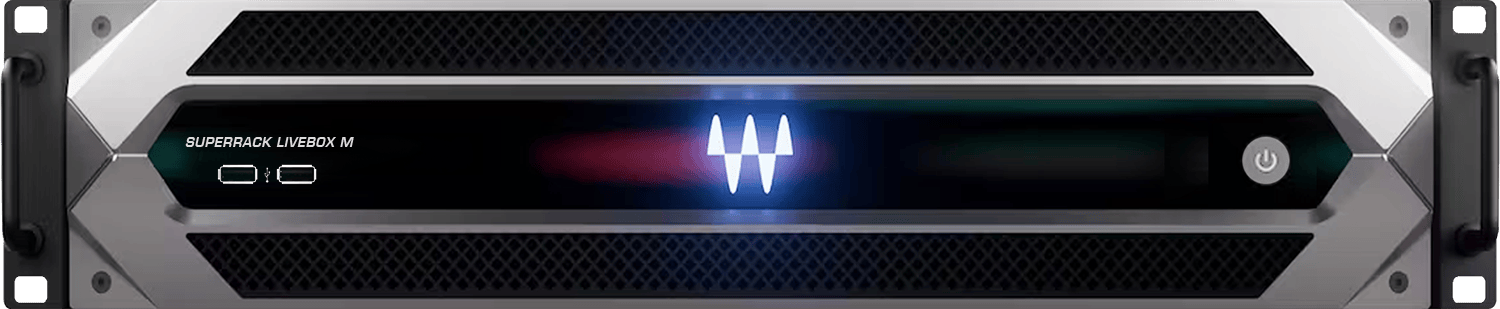

Waves SuperRack LiveBox MADI

Waves SuperRack LiveBox MADI

(0 review)
¥ 61,938.05 ¥ 61,938.05

Add to cart
You have already submitted a query for this product today. Add to wishlist
Waves
21 Products
Waves

Audio processing, plugin and live sound workflow systems.

Hardware Processors

Product Downloads

User guides, data sheets and official documents are collected here.

View Waves Official Page
Download Waves Central
SuperRack Performer 用户手册
SuperRack LiveBox 用户手册

Features

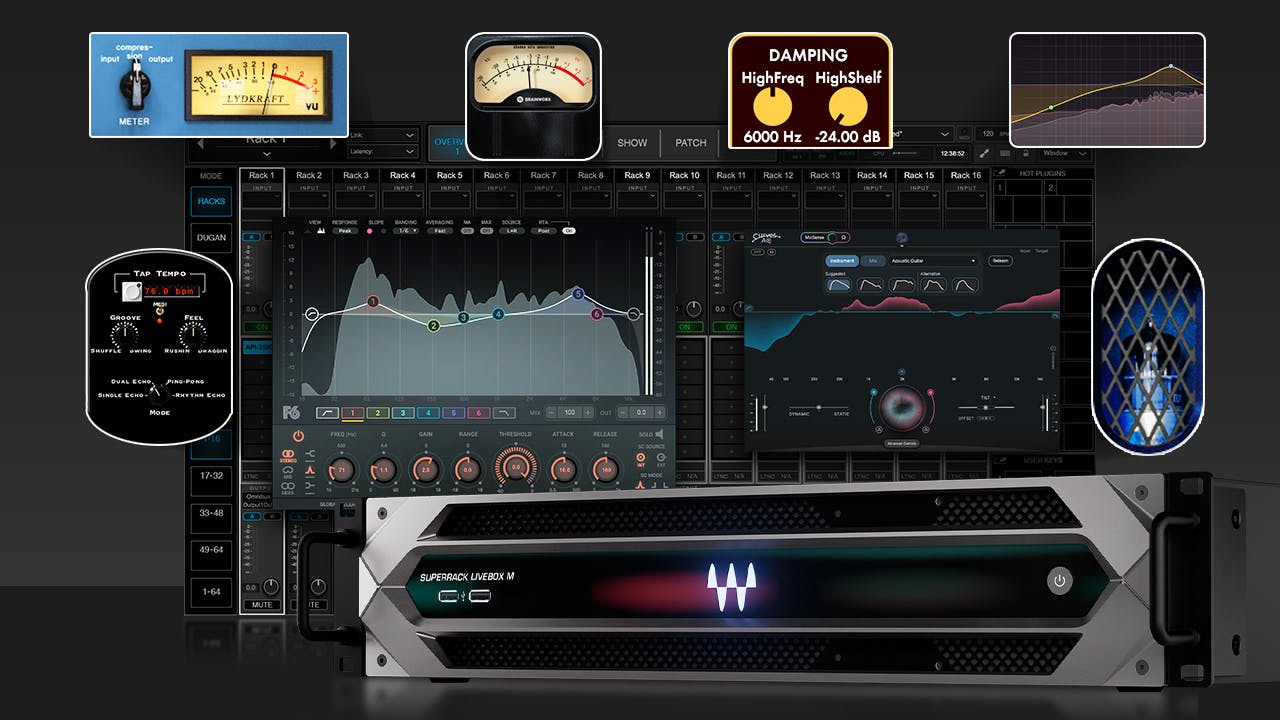

One Box for Live VST3 Plugins

LiveBox runs VST3 plugins by Waves and other brands, using SuperRack Performer for racks, snapshots and live workflow control.

One Box for Live VST3 Plugins

Native Processing, No Extra DSP

Plugin processing happens inside LiveBox, without an external SoundGrid DSP server, making it a compact choice for console-connected live plugin systems.

Native Processing, No Extra DSP

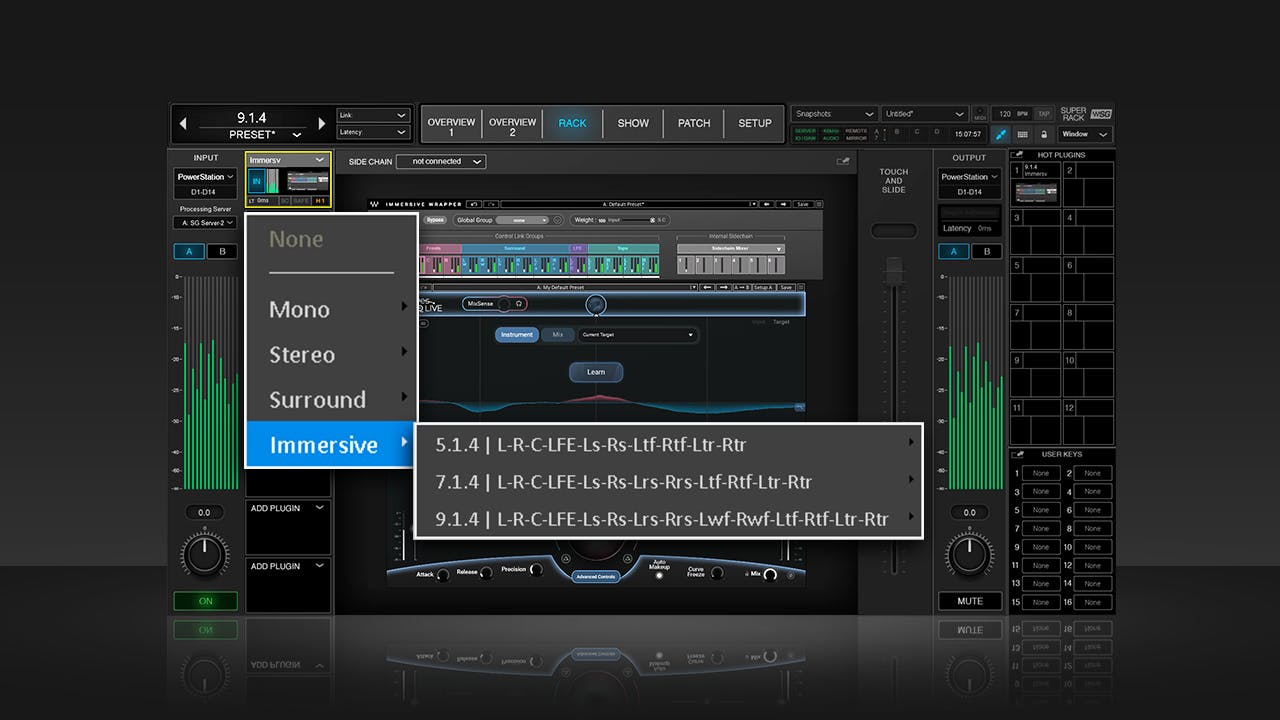

Low Latency and Immersive Support

Waves 官方示例 会话 在 48 kHz、64-采样缓冲 下为 3.5 ms，并支持 5.1.4、7.1.4、9.1.4 沉浸声格式。

Low Latency and Immersive Support

MADI Interface Workflow

Use the MADI model when the console or broadcast routing system is based on coaxial or optical MADI and you need a straightforward insert or parallel processing workflow.

MADI Interface Workflow

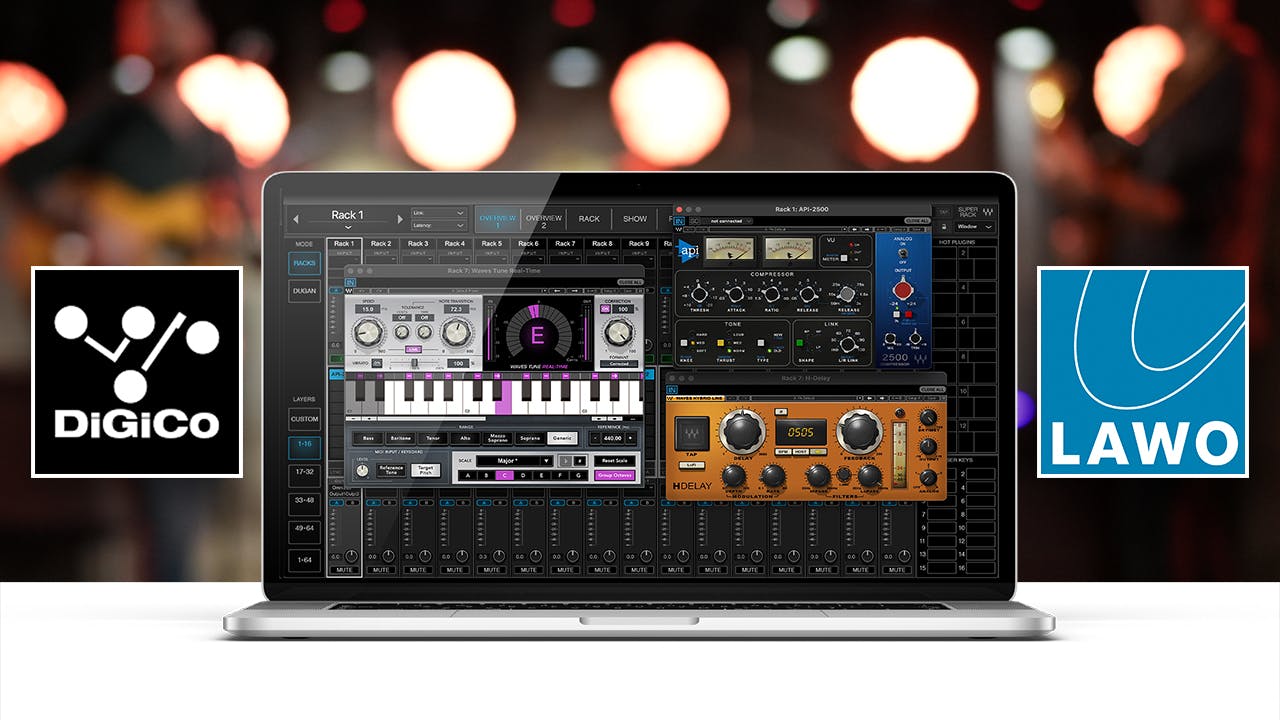

Includes Waves Live Bundle

The unit includes the Waves Live bundle with 50+ live mixing plugins, managed through Waves Central.

Includes Waves Live Bundle

Specs

Highlights

  • Run VST3 plugins by Waves and other brands in live shows
  • 一台设备连接调音台，形成 交钥匙式 插件处理方案
  • Native processing, no additional DSP hardware required
  • Includes SuperRack Performer live plugin host
  • 包含 Waves Live 套装，提供 50+ 个现场混音插件
  • Dual redundant power supply
  • Live-optimized low latency
  • Immersive audio support: 5.1.4, 7.1.4 and 9.1.4
  • 包含 沉浸声封装器，可将 Waves 单声道插件用于沉浸声处理

Hardware and I/O Specs

Interface modelMADI PCIe I/O: RME HDSPe MADI, 64 Coaxial or 64 Optical at 48 kHz; 32 Coaxial or 32 Optical at 96 kHz

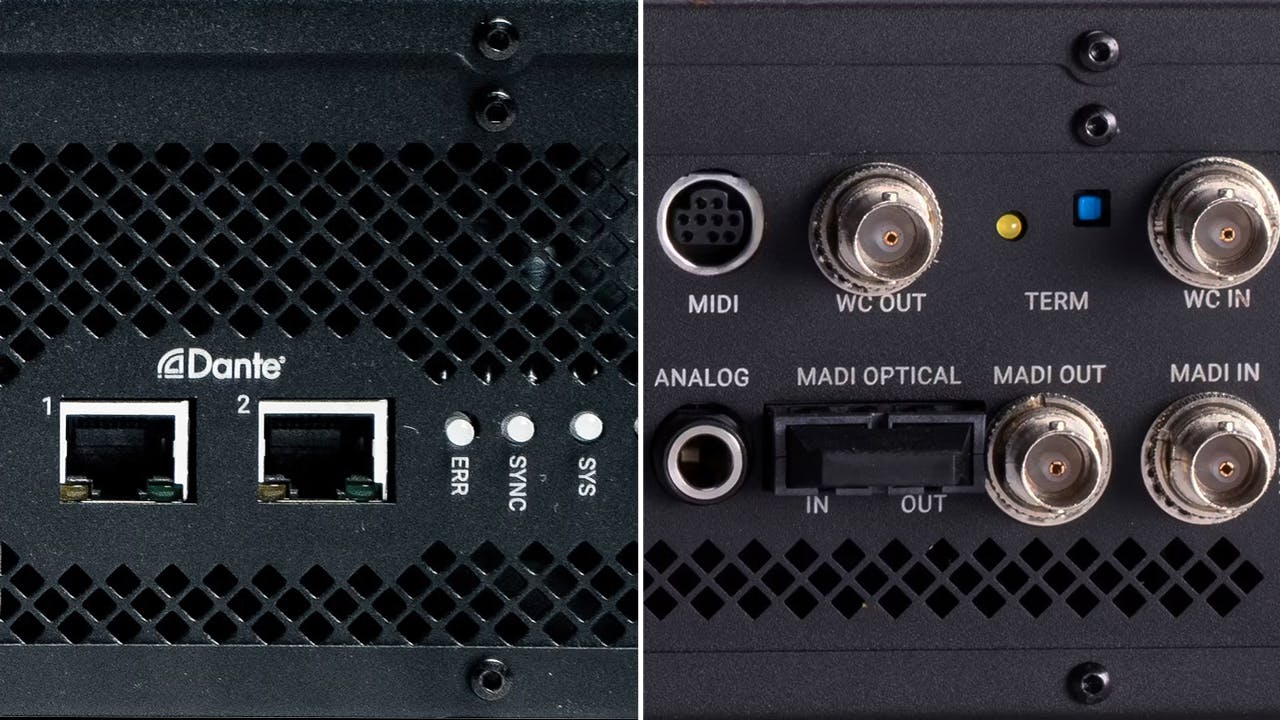

Rear-panel audio I/OMADI Coaxial x1, MADI Optical x1, MADI status LEDs
Recommended workflowUse the MADI model when the console or broadcast routing system is based on coaxial or optical MADI and you need a straightforward insert or parallel processing workflow.
Product roleTurn-key native plugin processing box for live sound
Plugin hostIncludes SuperRack Performer
Plugin formatVST3 plugins by Waves and other brands
Included plugin bundleWaves Live 套装，包含 50+ 个插件
ProcessingNative processing, no additional hardware required
Latency exampleWaves 官方示例 会话 中，48 kHz、64-采样缓冲 时为 3.5 ms
官方示例 会话8x Alpha Labs De-Feedback, 8x H-Reverbs, 32x F6-RTAs, 8x Abbey Road TG12345, 16x C6, all mono
ScreensSupports up to 3 screens
Front panelUSB2 x2, power switch

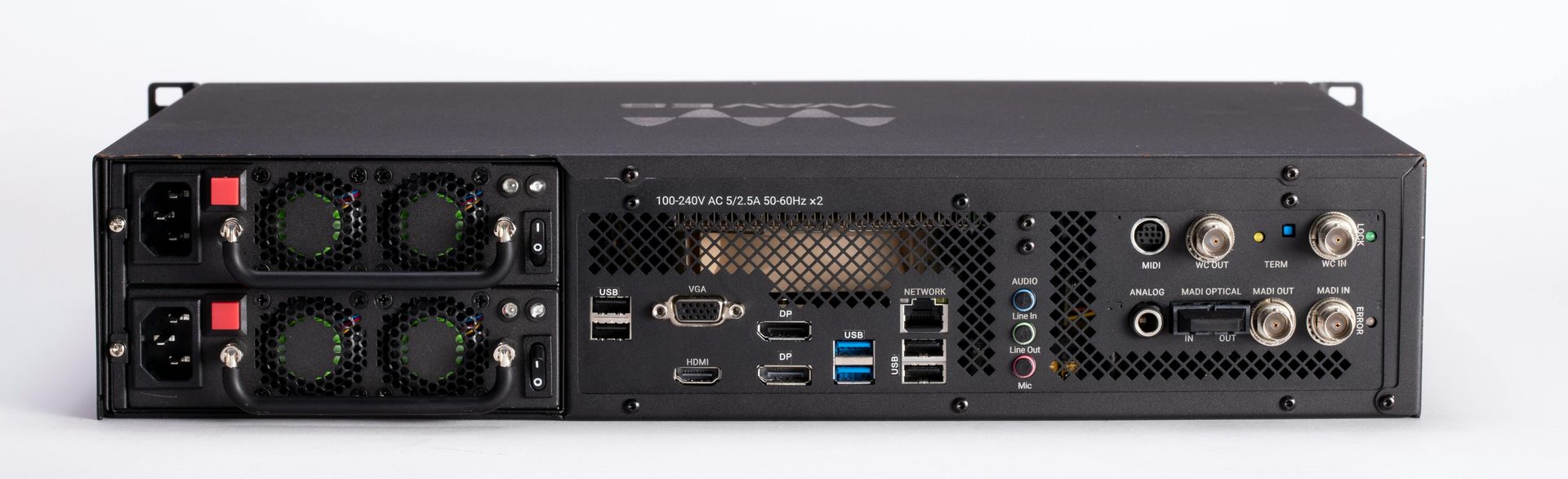

Back panel commonRedundant PSU, USB2 x4, USB3 x2, Network RJ45 x1, VGA x1, HDMI x1, DP x2
Rack format2U rack-mountable
DimensionsLength 48.2 cm / 19 in; height 8.8 cm / 3.5 in; depth 39.2 cm / 15.4 in
Weight9.5 kg / 20.9 lb
Power consumption100-240V, 50/60 Hz, 160W
Operating environment50-95 F / 10-35 C
Maximum environment104 F / 40 C
Service noteLiveBox D/M 上的 SuperRack Performer 不支持 DiGiCo PFL/Solo 显示 Insert/Output 的 ProLink 调音台 远程 功能
