64-channel (128-input) / 44-bus digital mixer. Optional expansion to 80 ch. (160 inputs) / 52 buses.

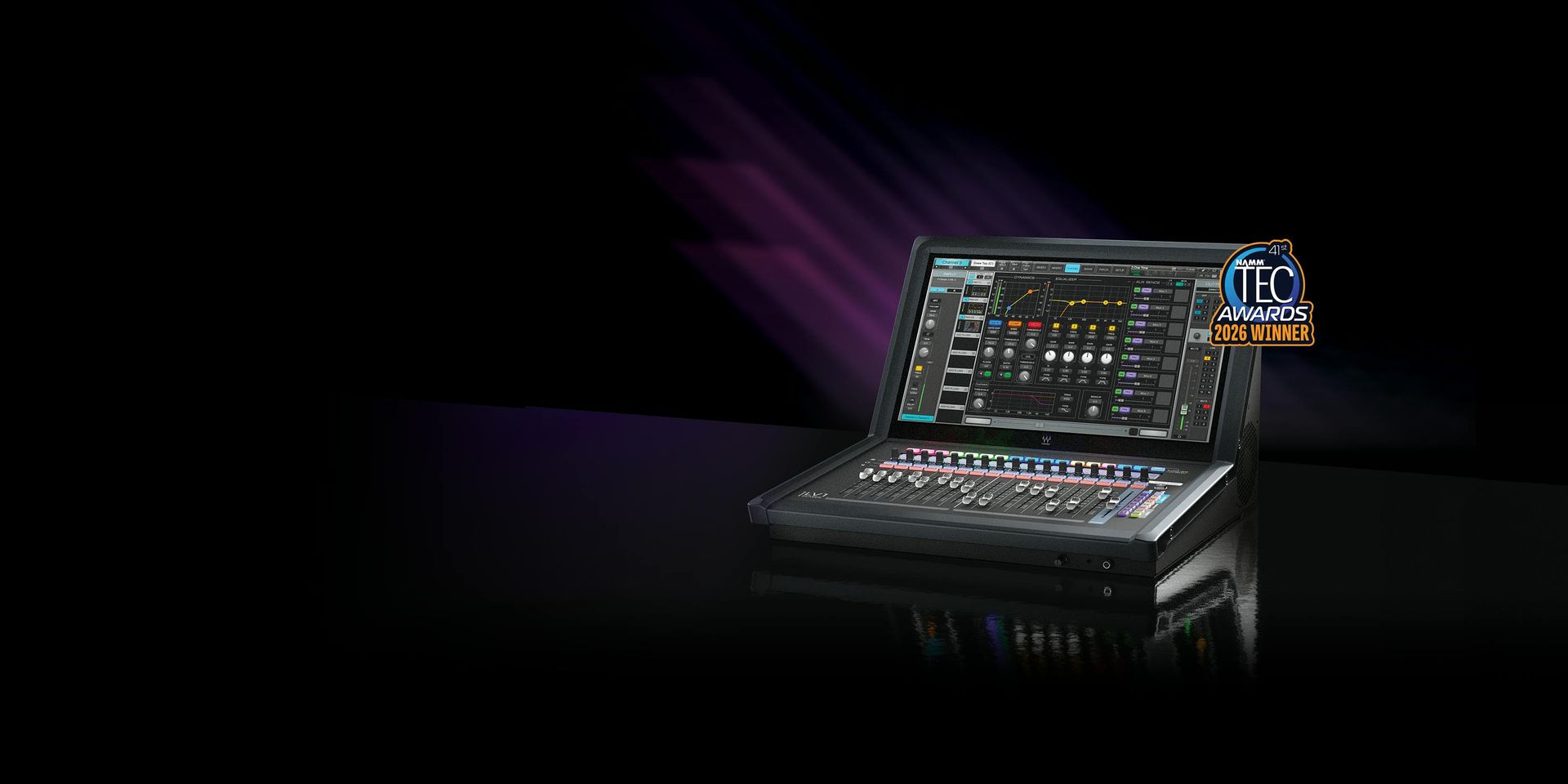

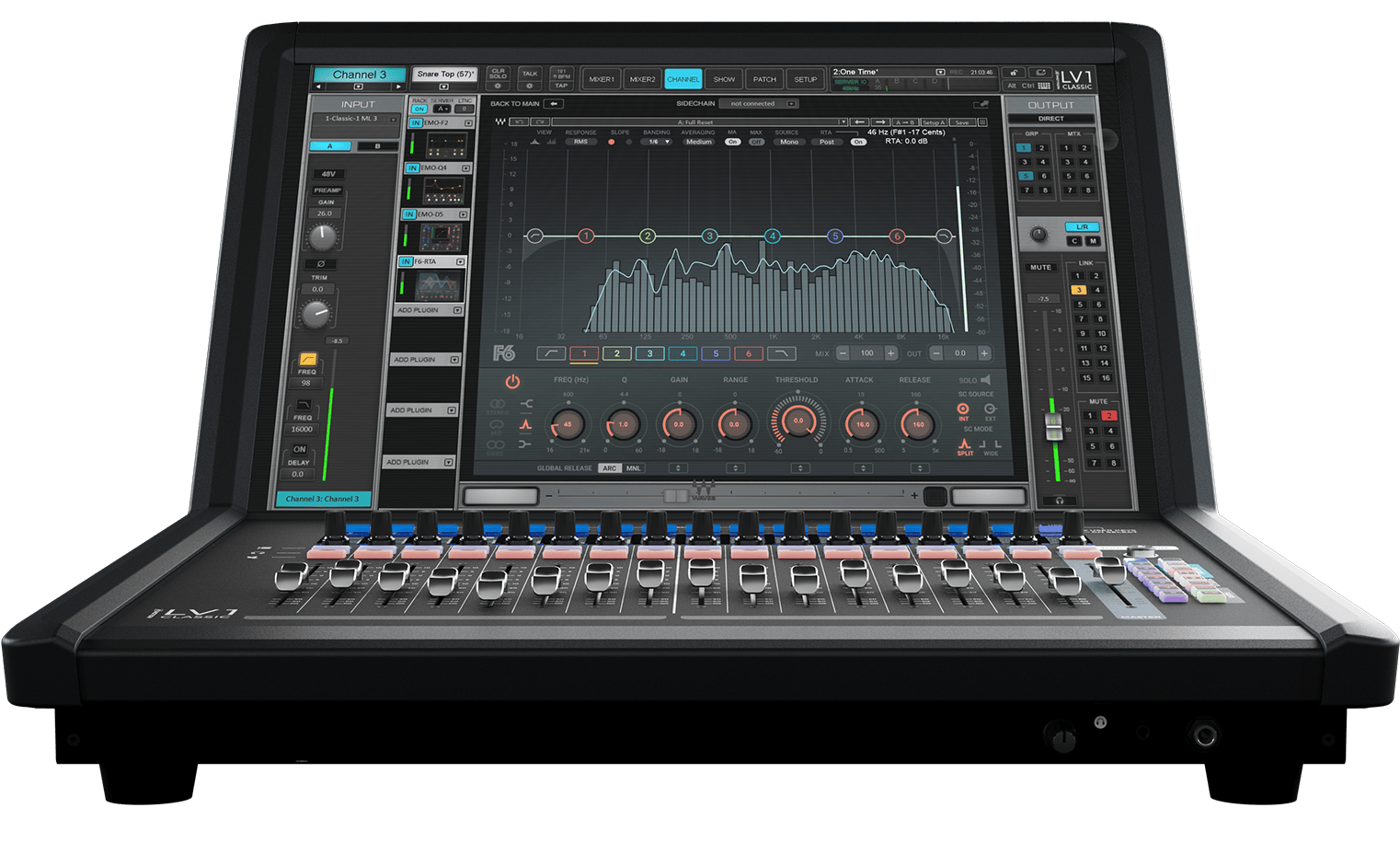

LV1 Classic 将 Waves LV1 现场混音平台的声音品质、创作自由和系统灵活性，整合到经典硬件调音台形态中。它提供 64 个立体声通道（128 输入）和 44 条立体声总线，可通过 80-Channel Expansion 扩展到 80 个立体声通道（160 输入）和 52 条总线。
64 stereo channels (128 inputs) and 44 stereo buses of industry-leading sound, with the option to expand to 80 stereo channels (160 inputs), 52 buses, 32 auxes. 16 inputs powered by Waves Signature Preamps. The live sound industry's deepest processing, built into the console. Intuitive workflow, easy scalability, maximum portability.
Now, for the first time, all of these advantages of the LV1 live mixing platform are available in a classic hardware form factor.
eMotion LV1 Classic 基于经过行业验证的 Waves LV1 混音引擎 声音品质，采用全球现场工程师熟悉的实体调音台工作流。

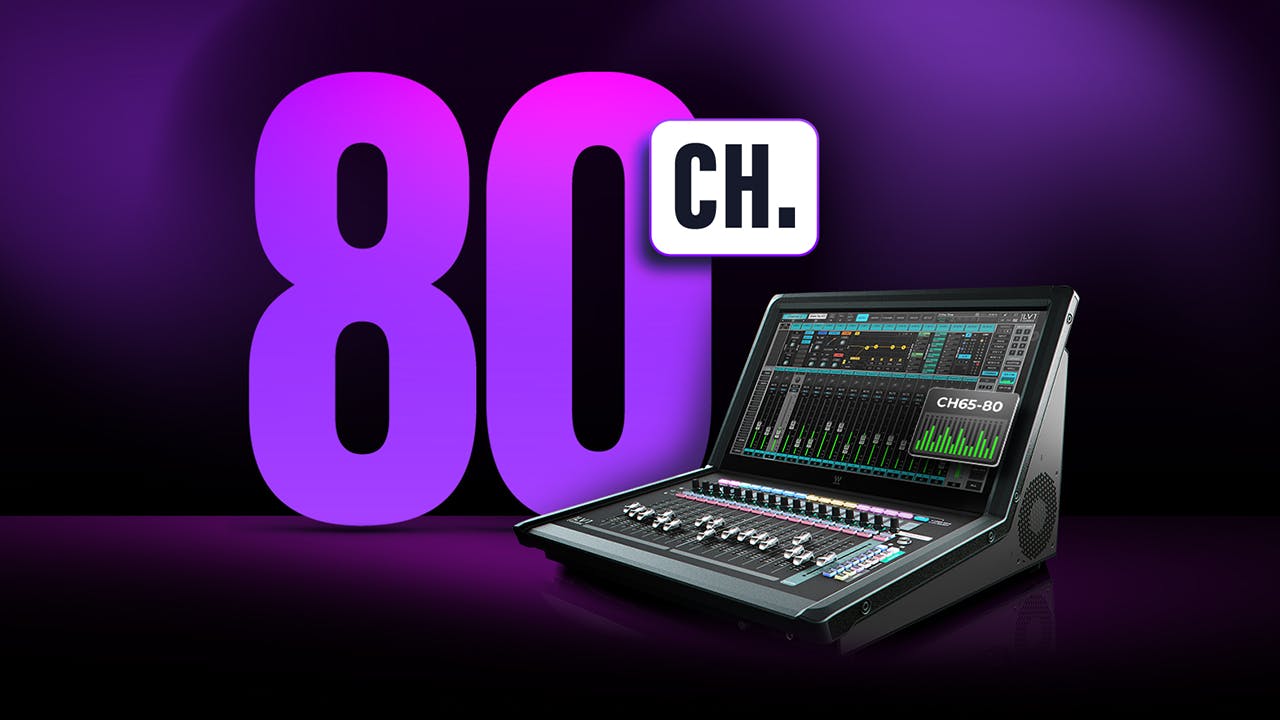

When larger shows require more inputs and buses, eMotion LV1 80-Channel Expansion grows the system to 80 stereo channels and 52 buses.
Mix bigger shows than ever with LV1: With the eMotion LV1 80-Channel Expansion option, LV1 can grow from 64 to 80 stereo channels (up to 160 inputs) and from 44 to 52 buses. The extra 8 buses can be used flexibly: either as groups, for a total of 16 audio groups, or as auxes, for a total of 24 monitor auxes. This optional software upgrade is available to owners of LV1 Classic or LV1 64-ch. licenses (v16).

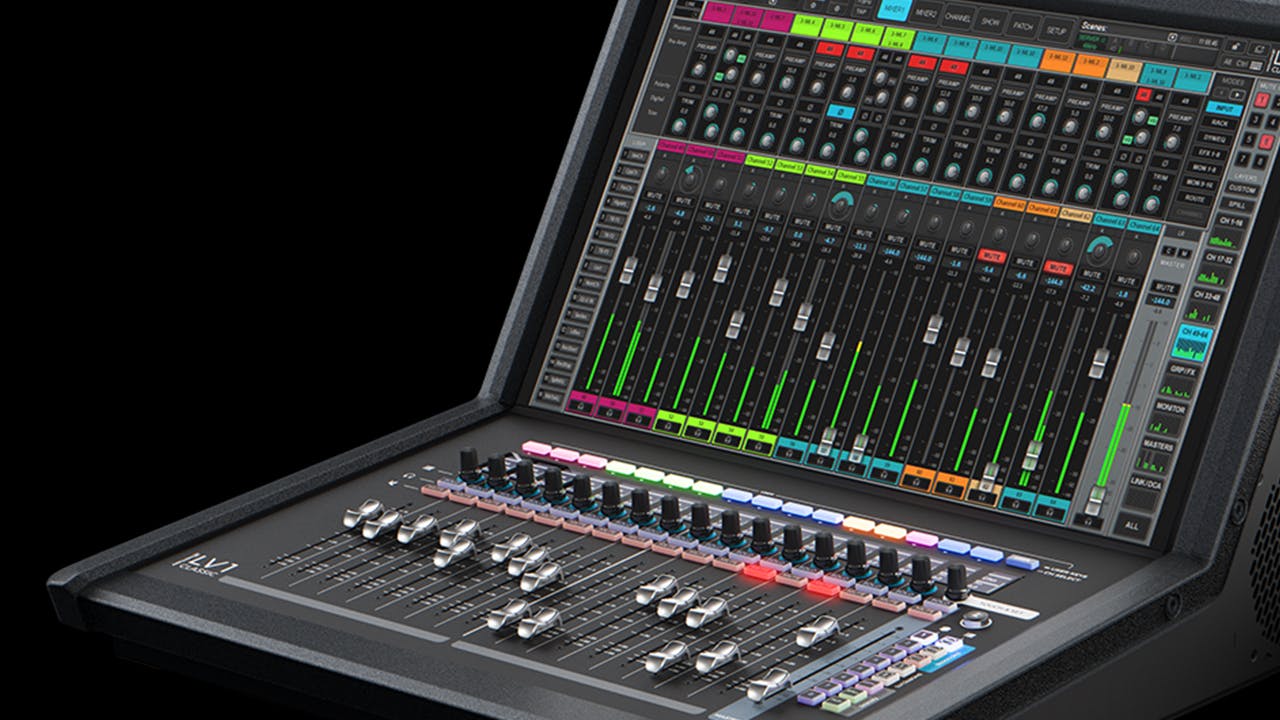

eMotion LV1 Classic boasts a double-precision 32-bit float mix engine that delivers unmatched clarity and headroom at 44.1-96 kHz. Renowned in the live sound industry, the proprietary LV1 mix engine leverages Waves' Tech Grammy-winning expertise in digital signal processing to deliver industry-leading sound quality.

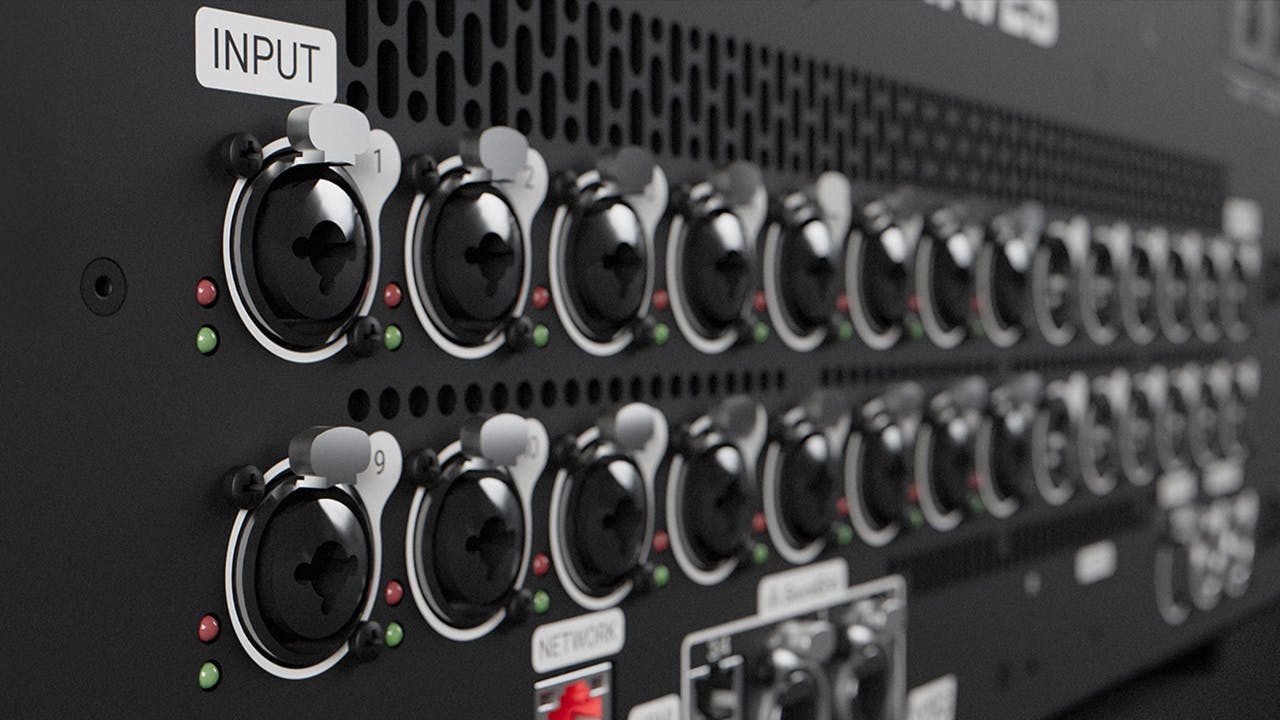

LV1 Classic's 16 inputs are powered by original-design, digitally controlled Waves Signature Preamps. With fully discrete analog circuits, these pristine preamps deliver maximum clarity and headroom, an incredibly low noise floor, and lightning-fast transient response. The added HMX feature allows you to choose between pure transparent preamp sound and rich harmonic enhancement per input.

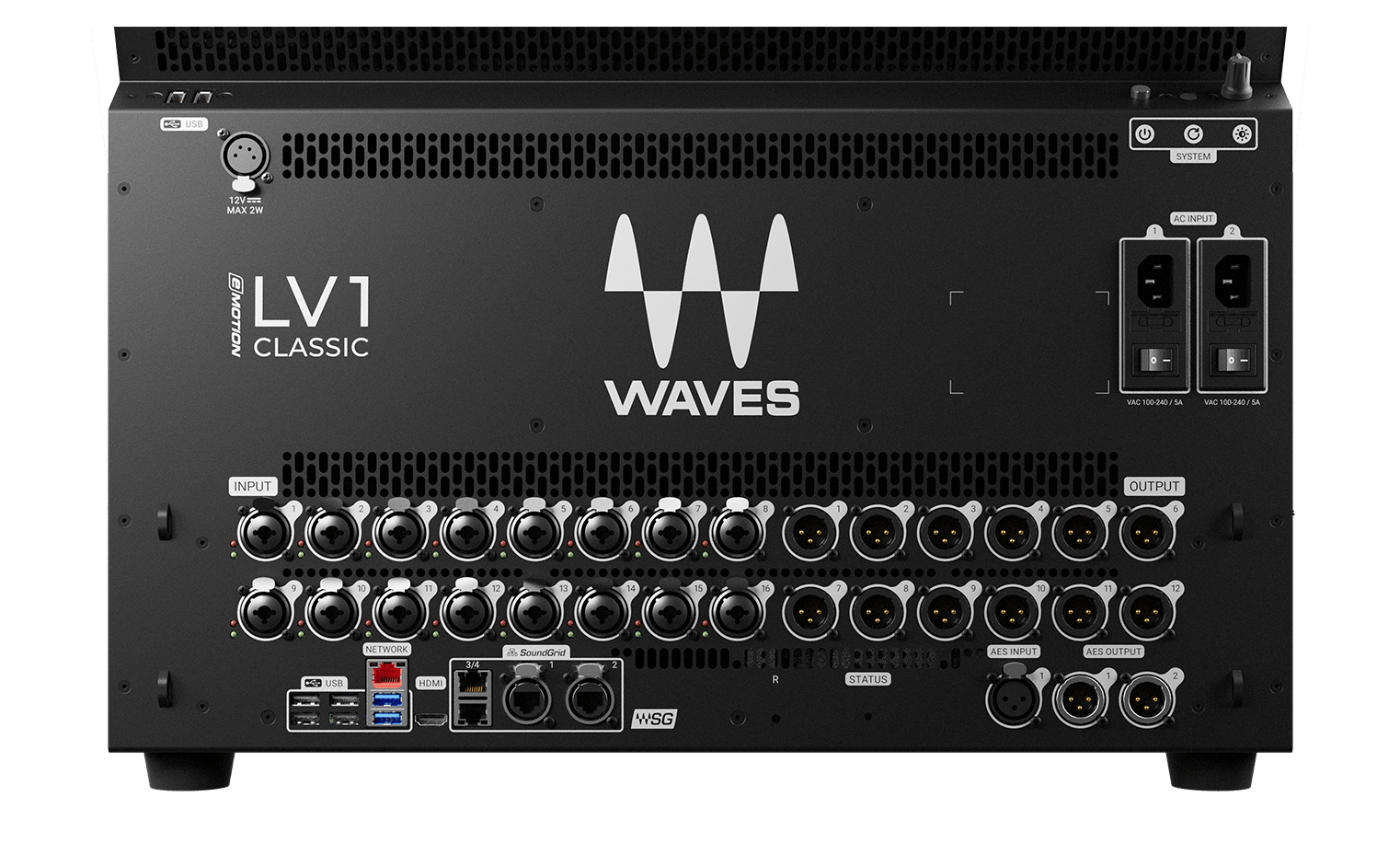

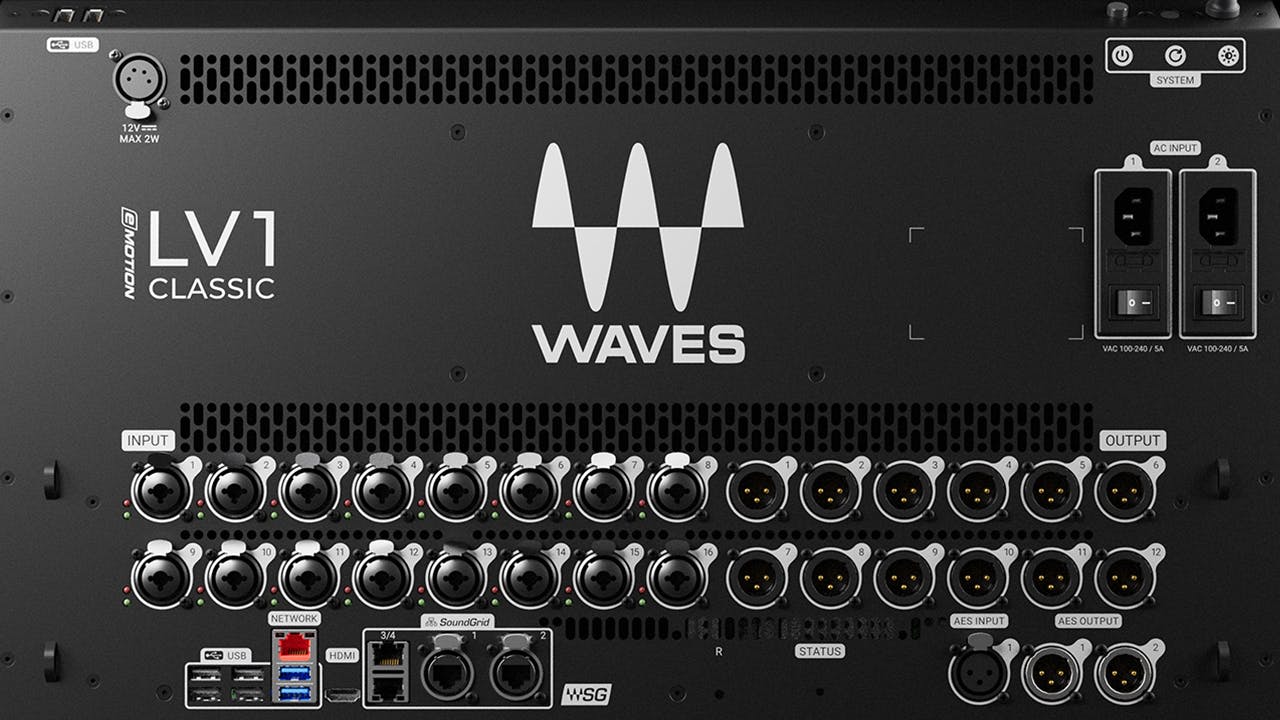

In addition to the 16 Waves Signature Preamp inputs, the back of the console includes 12 line outputs, 1 AES3 SRC in, 2 AES3 out, 4 SoundGrid ports (2 Ethercon + 2 Rj45), a Hi-power H/P output with 1/4" jack + minijack, HDMI / 8 USBs / remote network, a 12v XLR4 lamp option, and dual power supply for redundancy.

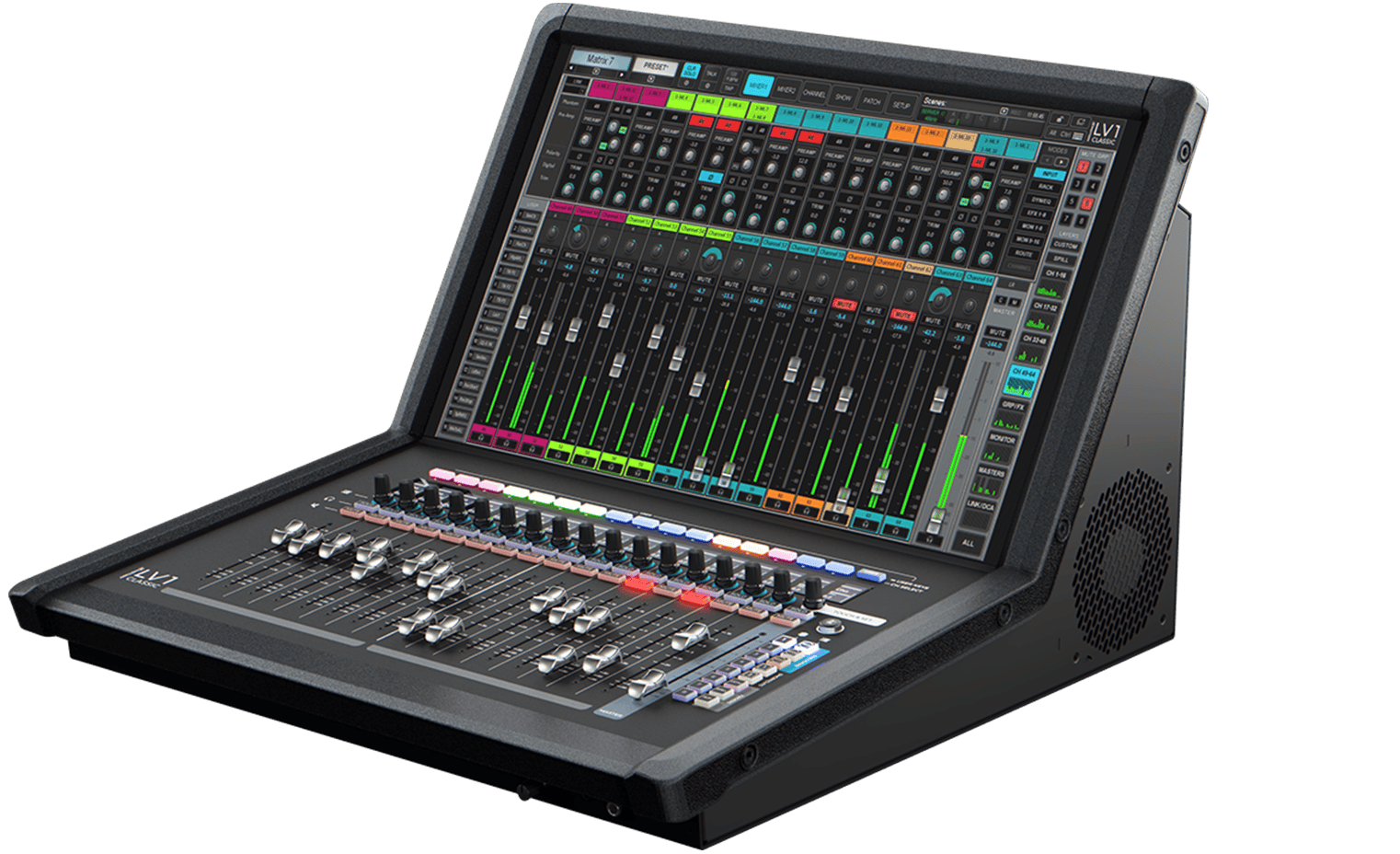

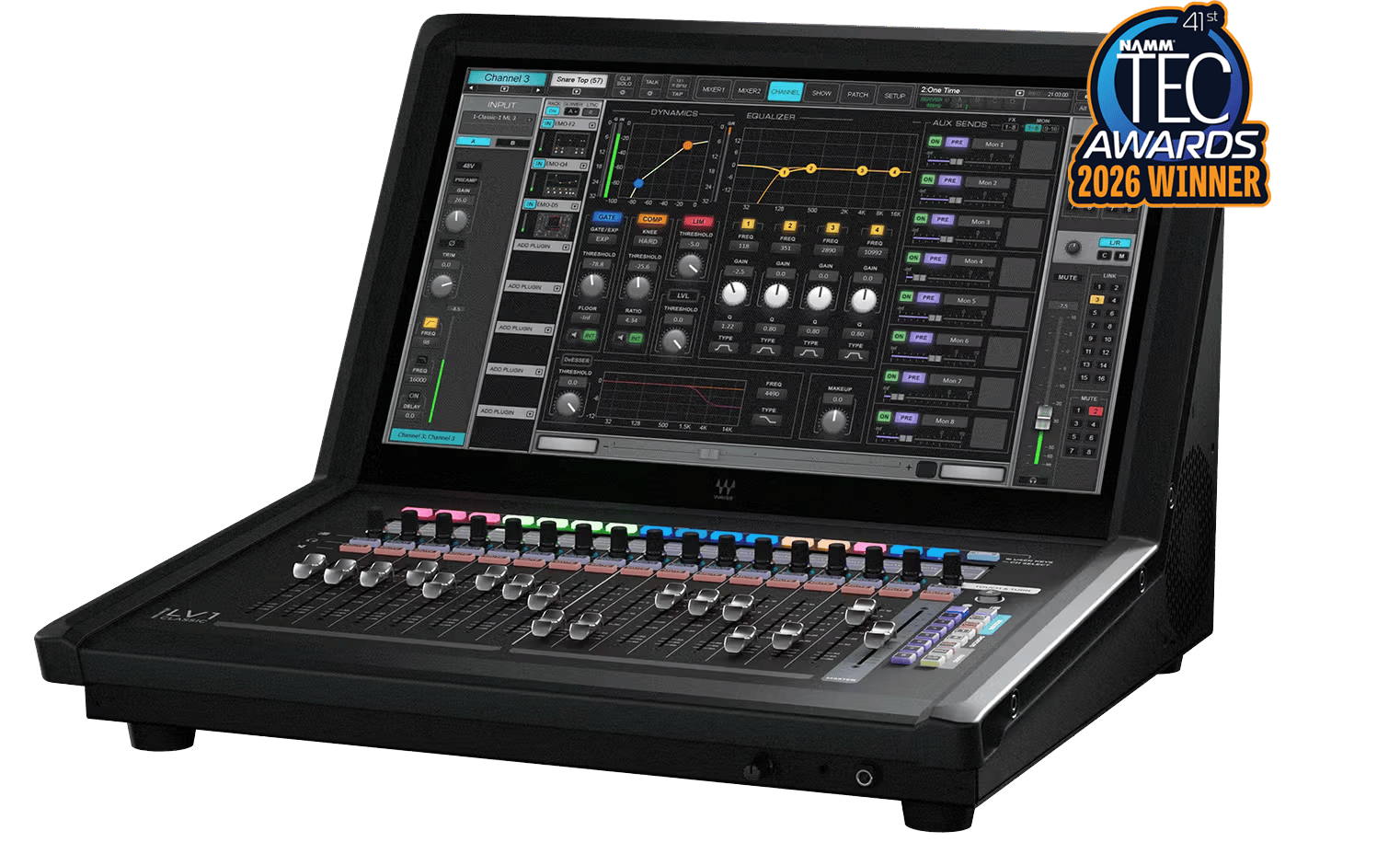

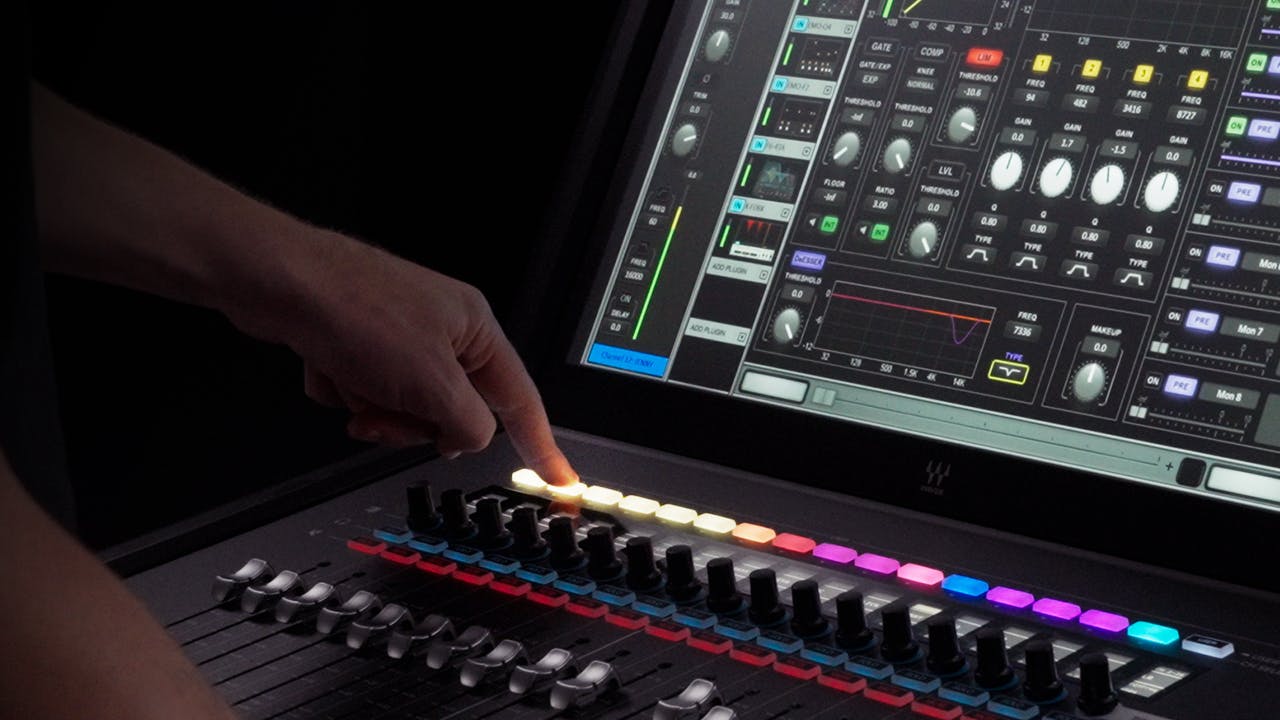

With a large 21.5" multi-touch screen, a carefully designed tactile surface with 17 100 mm faders, and smart software/hardware design that ensures quick access to essential mixer functions and user-defined actions, eMotion LV1 Classic is built for efficiency and speed in live sound scenarios.

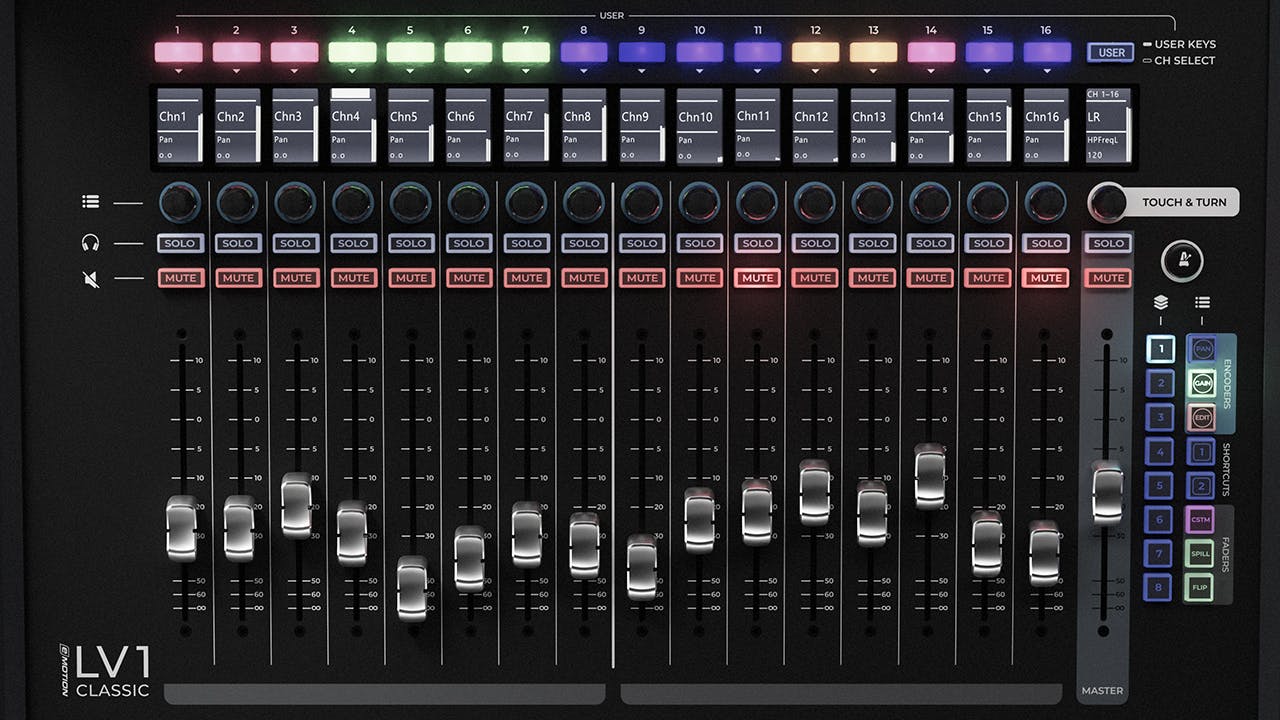

LV1 Classic's all-new tactile control surface is built for comfort and speed. The 17 newly designed motorized faders are designed for an organic feel, with optimal resistance to ensure both reliability and responsiveness. 17 multi-purpose encoders allow extensive customization of important mixer functions and user-defined actions, including mapped plugin control. Integrated LCD metering per channel provides extra instant visual feedback.

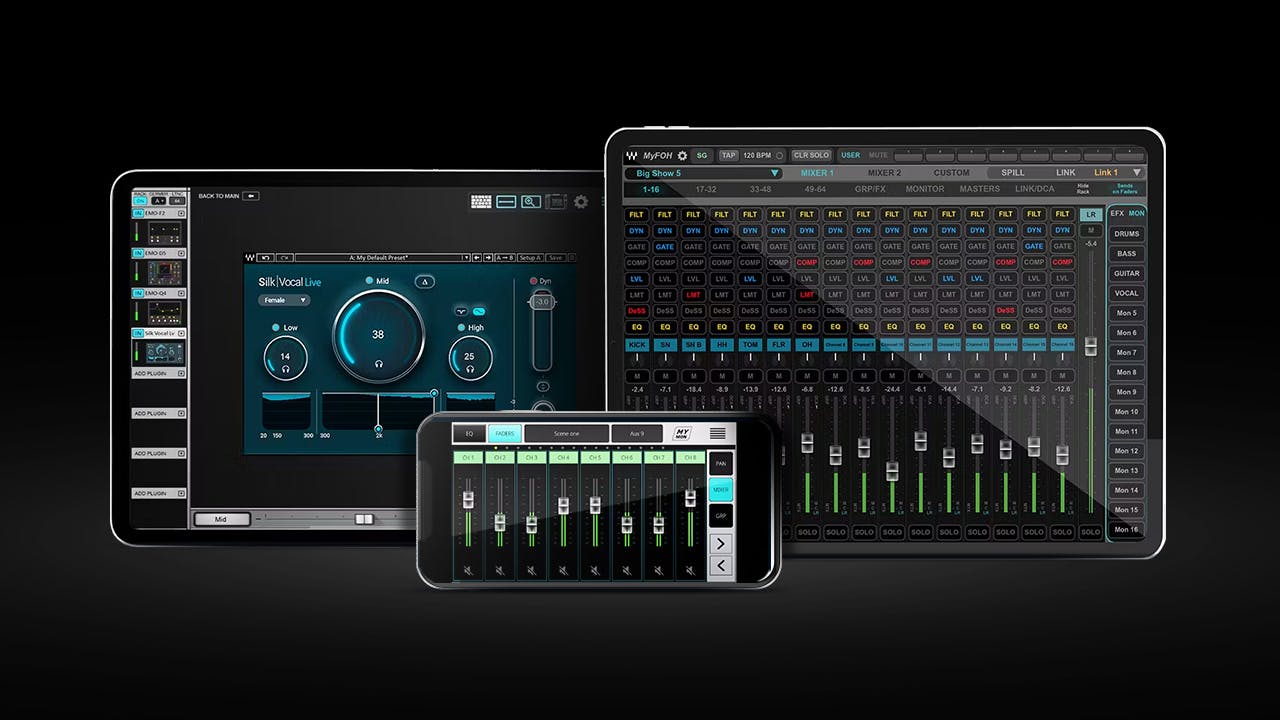

Control eMotion LV1 Classic from anywhere in the house: MixTwin gives you full remote control over your mixer & plugin settings from an iPad by mirroring the LV1 screen. MyFOH offers independent iPad control of the mixer levels, panning and sends from anywhere in the venue. MyMon gives performers mobile control over their own monitor mixes.

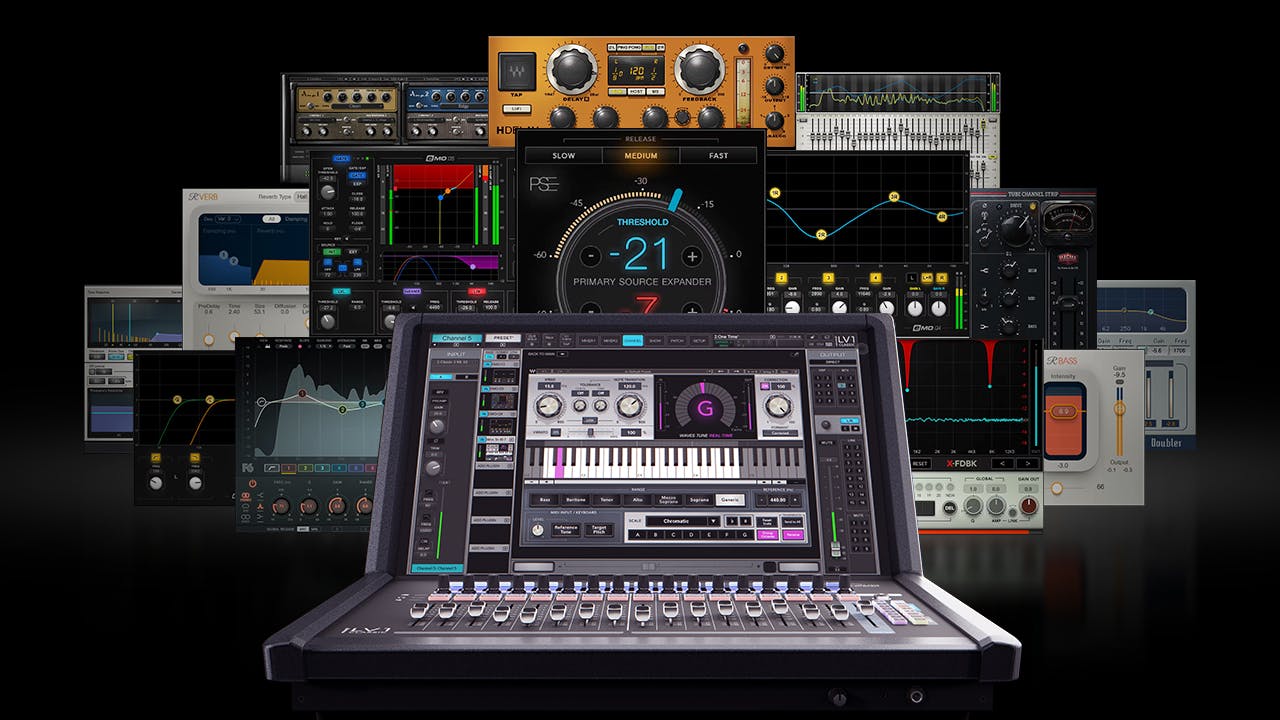

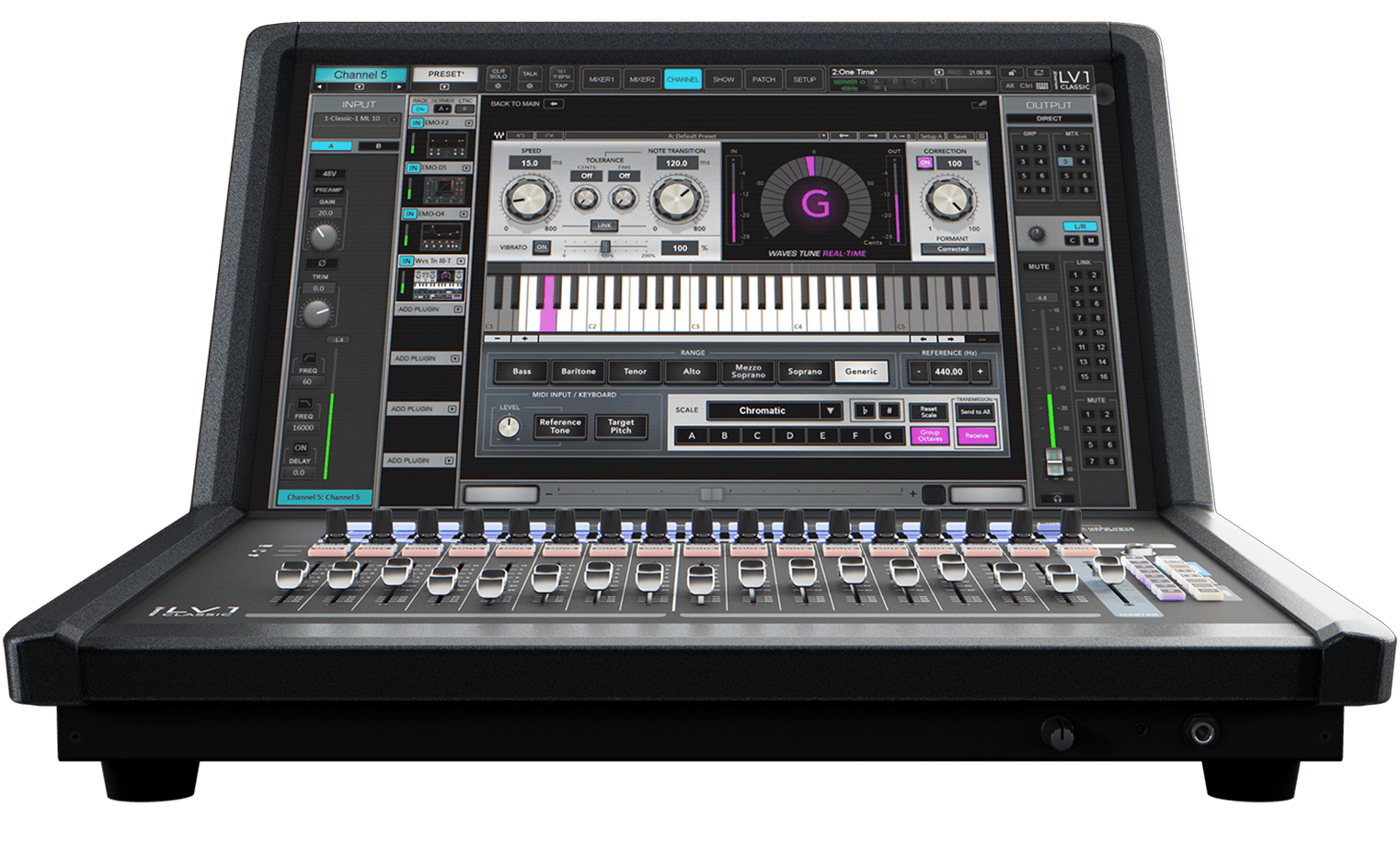

16 industry-favorite Waves processors come built into LV1 Classic, with processing handled by the console's internal powerful DSP engine. Processors include F6 Dynamic EQ; Waves Tune Real-Time for live vocal tuning; X-FDBK and PSE for feedback and mic bleed control; the eMO D5, Q4 and F2 channel strip plugins covering dynamics, EQ and filtering; GEQ 30-band EQ; R-Comp; Magma Tube Channel Strip; H-Delay, R-Verb, TrueVerb, Doubler, and GTR3 for effects; and R-Bass for low end control.

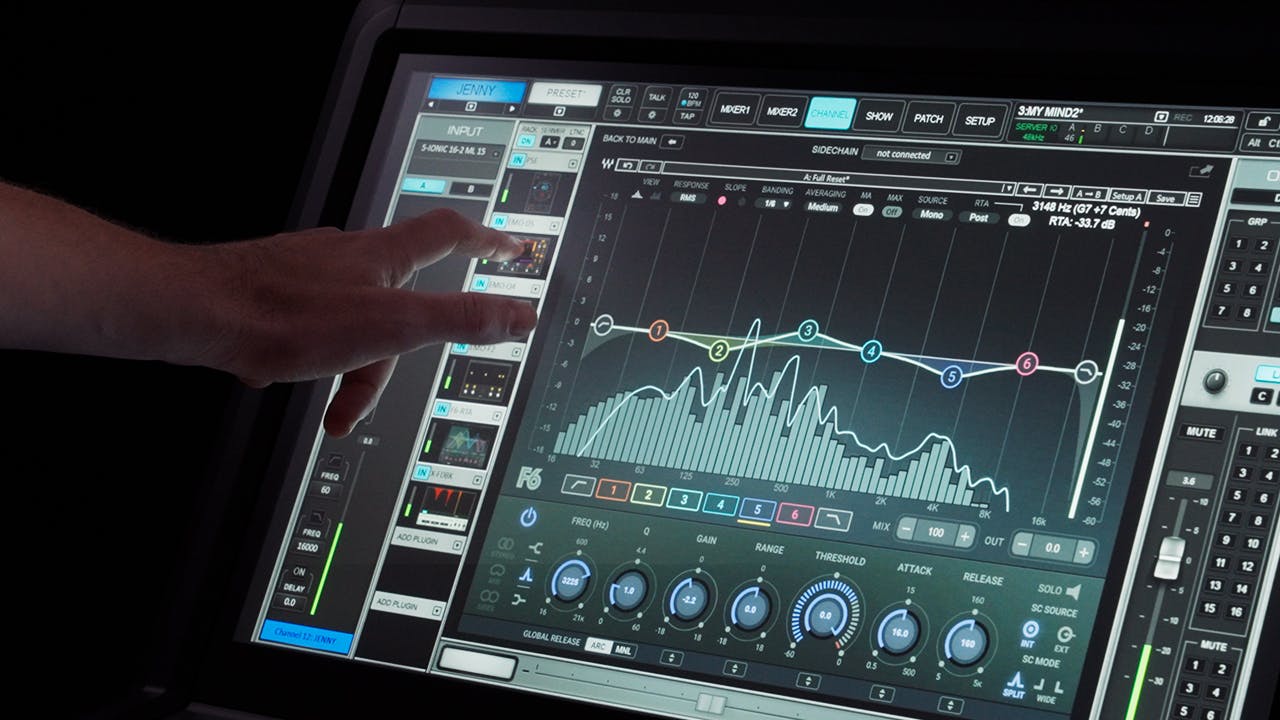

Some digital mixers limit you to a pre-defined channel strip for processing. In LV1 Classic processors can be chained flexibly, on any channel, via the 8-slot processing rack per channel. All processors are available for use on all input channels and on all other mix channels-that is, directly on any channel or group/bus-for maximum control of your sound.
The processing included in eMotion LV1 Classic is already powerful. But if you want yet more power, you can reach even deeper. Waves processors are staples in both studio production and live sound-and you can upgrade to your choice of over 160 live-optimized plugins, individually or in convenient Live Sound Bundles. Upgrades range from analog models of SSL, API and Abbey Road processors, to classic compression like CLA-2A and CLA-76, to Dugan auto-mixing.

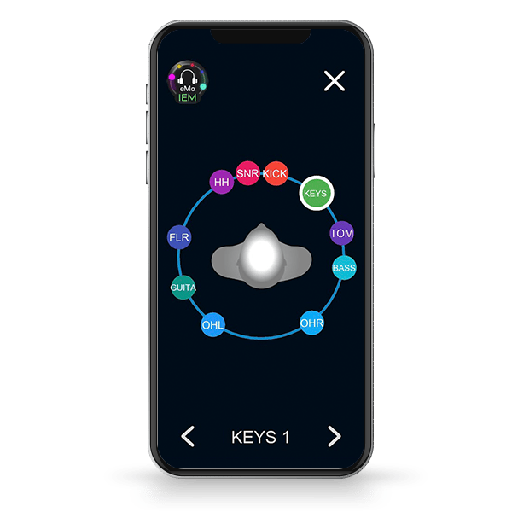

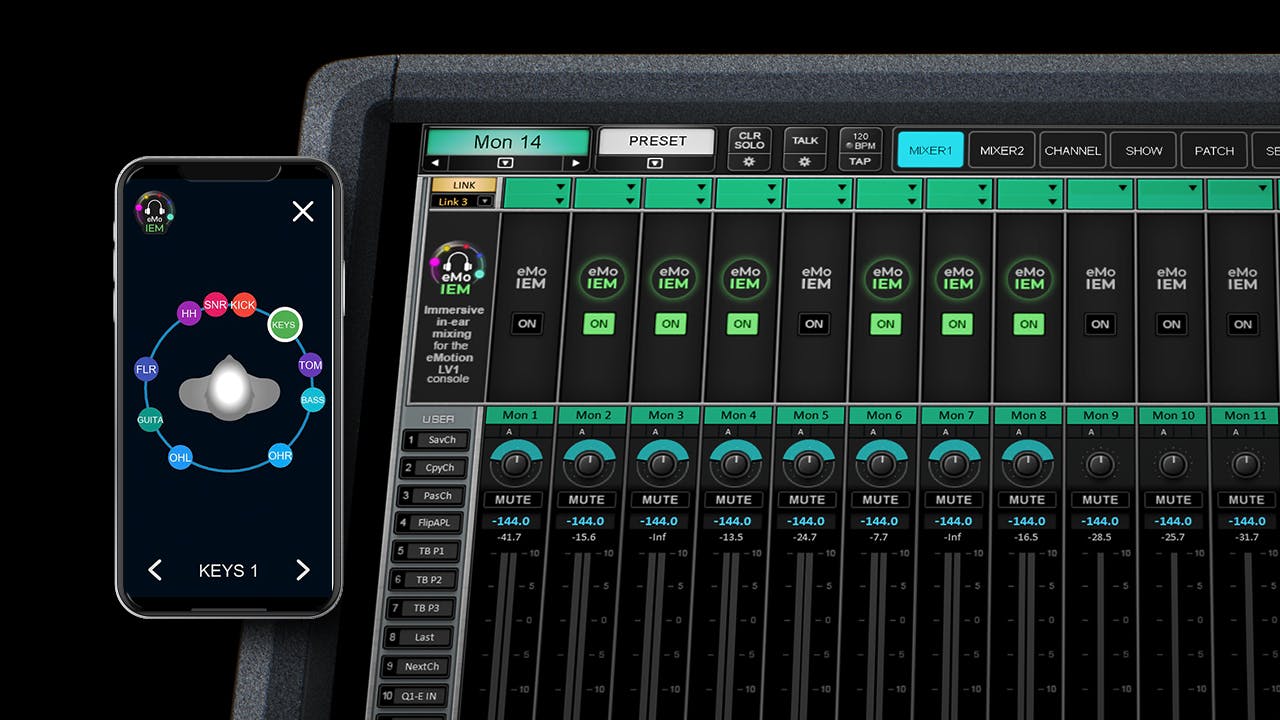

Bring clarity, openness and comfort to in-ear monitors: The eMo IEM plugin is a software-only upgrade to LV1 consoles, turning your LV1 monitor outputs to immersive at the click of a button. No external hardware is required-simply set any of the LV1's monitor outputs to IEM, and your performers will receive monitor sound in their in-ears, via the Waves MyMon remote control app for LV1.

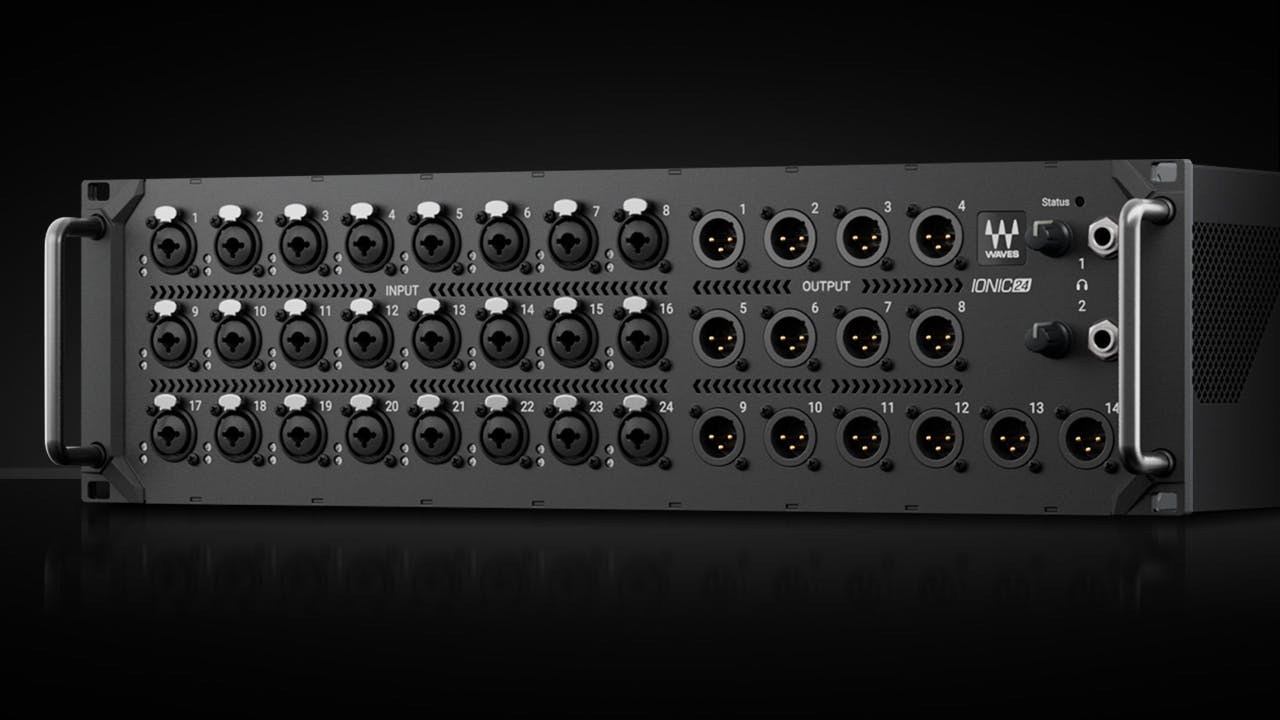

Powered by the same Waves Signature Preamps as LV1 Classic's own inputs, Waves IONIC stageboxes boast the same superior sound, with maximum headroom, exquisite dynamics, and an incredibly low noise floor. With IONIC 24 and IONIC 16, your LV1 Classic gets the pristine-sounding stageboxes it deserves.

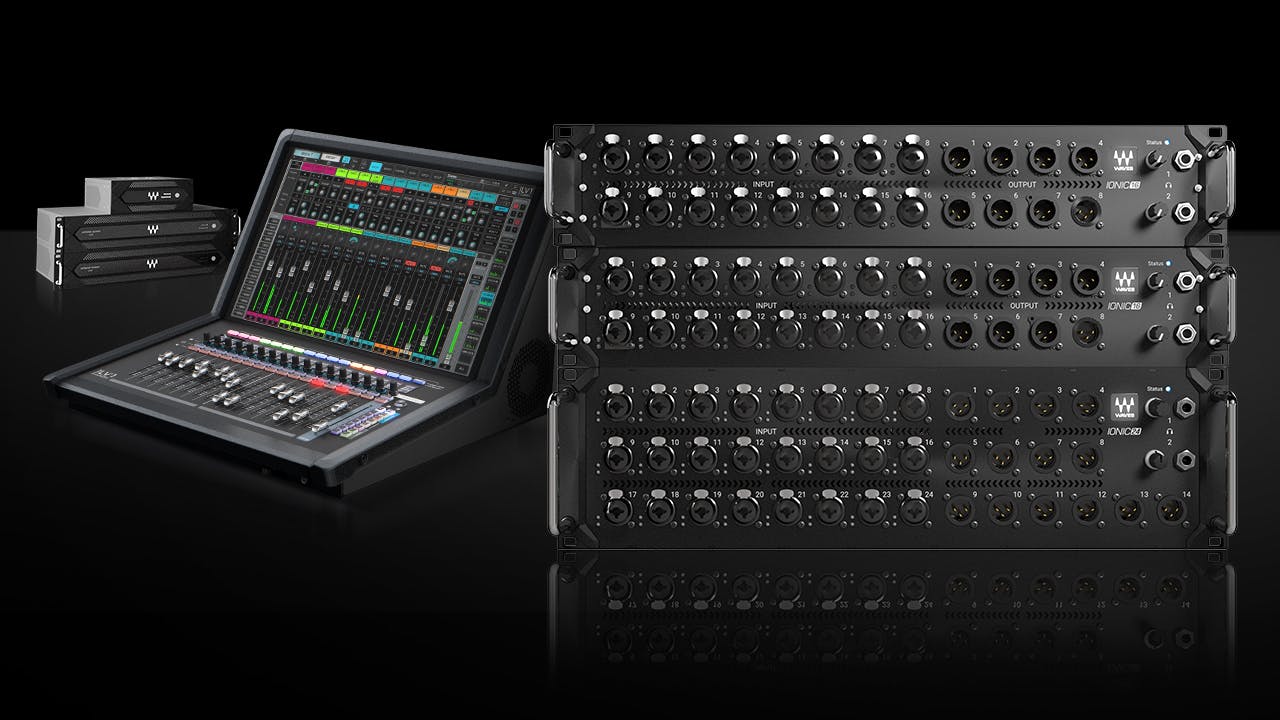

Easily expand as your needs grow: eMotion LV1 Classic is built for easy expansion. Add more I/O with Waves IONIC stageboxes; more DSP if needed, with up to 3 additional SoundGrid servers (plus 4 more for backup); Dante and MADI expansions; an external touch screen; or more tactile fader banks. Easily network multiple LV1 Classic consoles at different mix positions (FOH, monitors, broadcast), with easy I/O sharing and real-time gain tracking.
LV1 Classic's immense power is packed into a compact form factor, for easy travel and convenient placement at any venue: only 15.8 x 22.1 x 22" (402 x 561 x 560 mm). Lightweight at just 38 lbs. (17.2 kg), it can be checked in on regular commercial flights, given appropriate casing.
LV1 Classic comes with 64 stereo channels (128 inputs) and 44 buses out of the box, and can be expanded to 80 stereo channels (160 inputs) and 52 buses with the optional 80-channel Expansion:
| LV1 64-Ch (No Expansion) | LV1 80-Ch (With Expansion) | |
|---|---|---|
| Channels (mono/stereo) | 64 | 80 |
| Inputs (maximum, if all mono) | 128 | 160 |
| Buses | 44 | 52 |
| Auxes (stereo/mono): Total | 24 | 32 (8 are flexible: Monitor Auxes or Audio Groups) |
| Monitor Auxes | 16 | 16 or 24 |
| Audio Groups | 8 | 8 or 16 |
| FX Auxes | 8 | 8 |
| Master Channels | L/R/C/Mono | L/R/C/Mono |
| Matrices (Stereo/Mono) | 8 | 8 |
The console includes a powerful selection of Waves processors for live mixing.

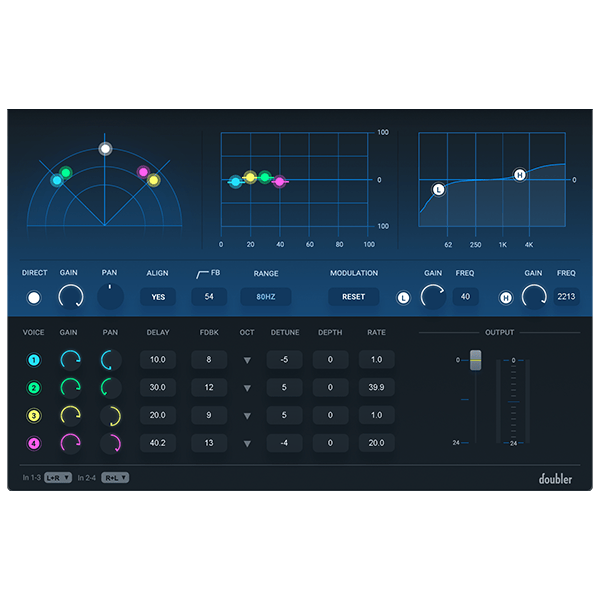

4-voice doubler/imager with modulation and detuning

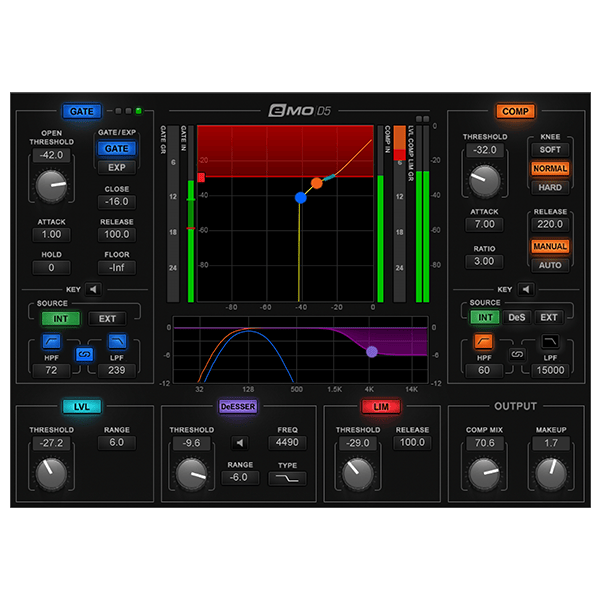

Multiple dynamics processor, for stage or studio

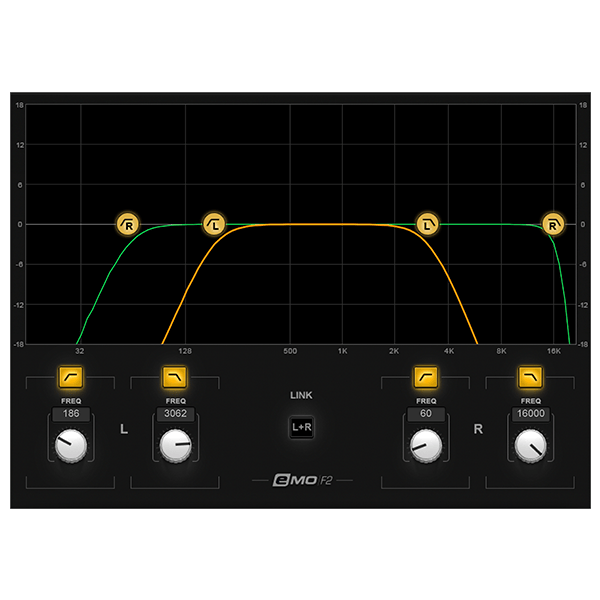

High/lowpass utility filter for stage or studio

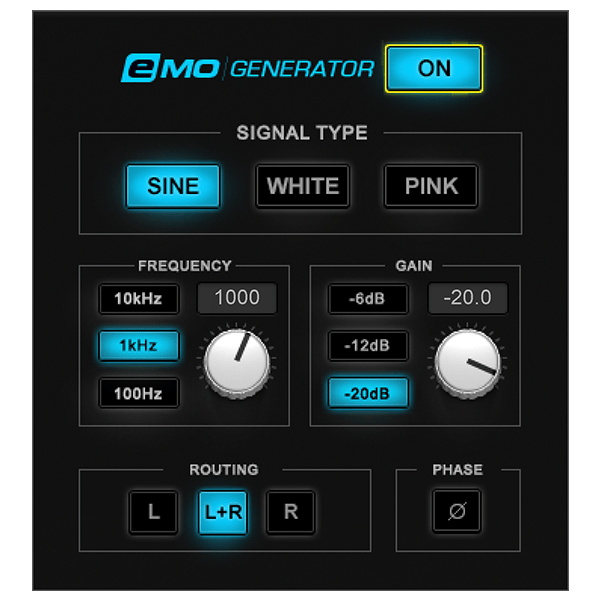

Analyze, synthesize, test, set up, ring out, and mix

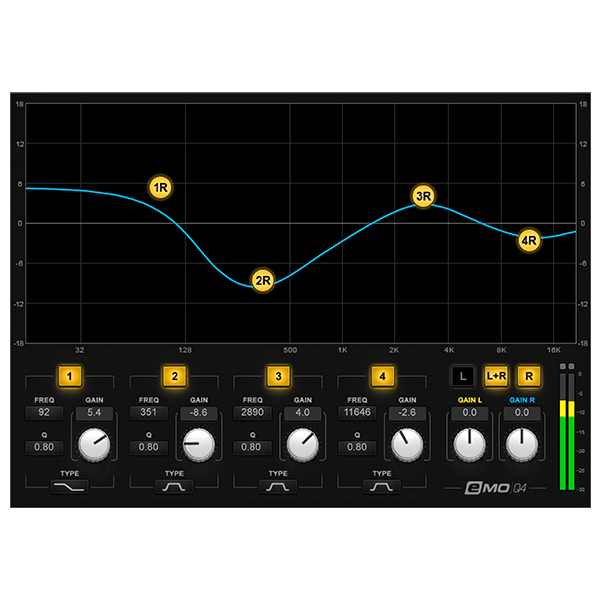

4-band paragraphic EQ optimized for the stage

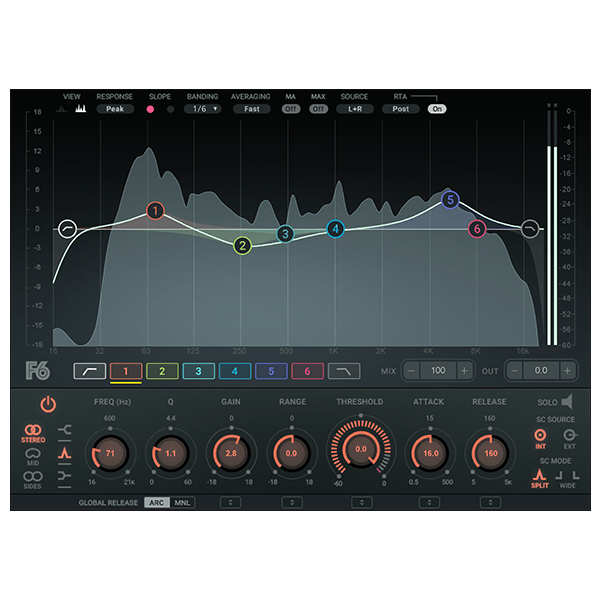

Surgical dynamic equalizer with 6 fully adjustable bands

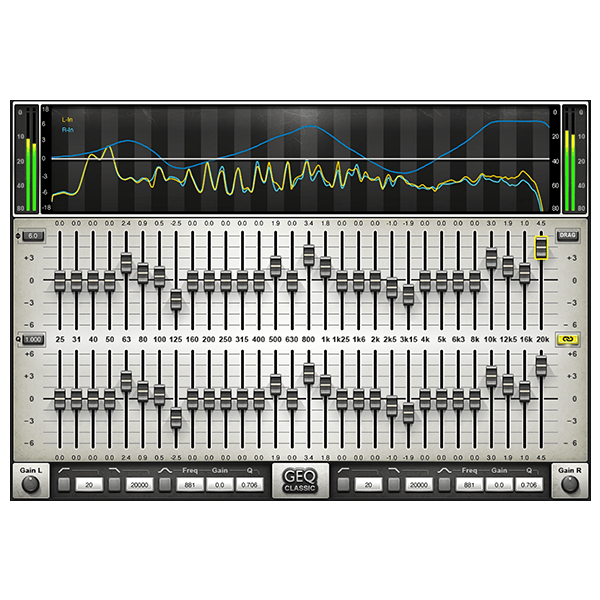

Two filter designs, 30 bands, parametric EQ, RTA, and more

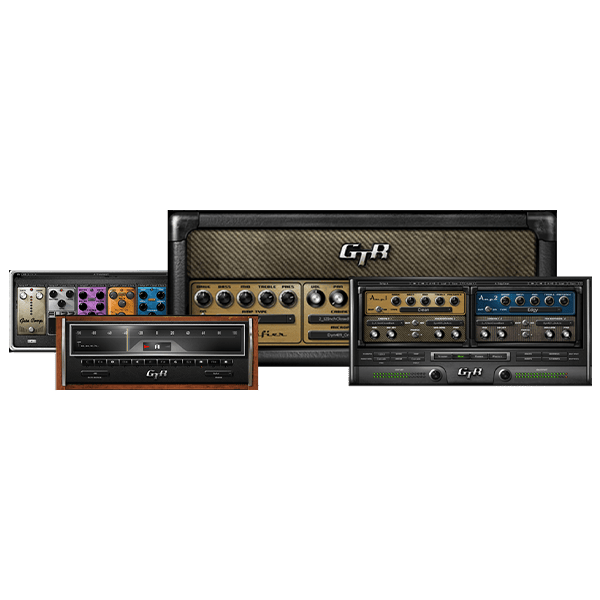

Amps, cabs, miking, and stompbox effects emulation

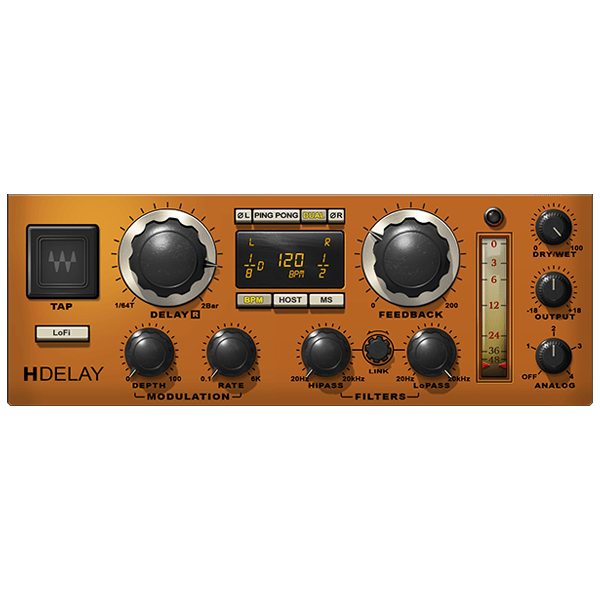

The complete toolbox for classic delay effects

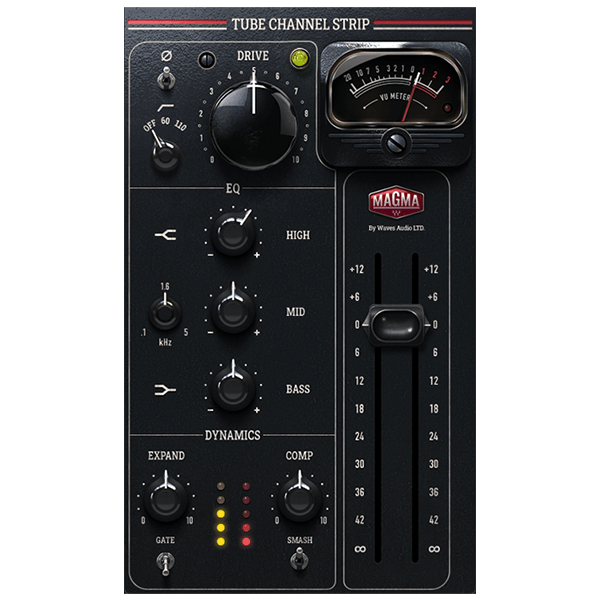

Sculpt your tracks with the rich analog Magma sound

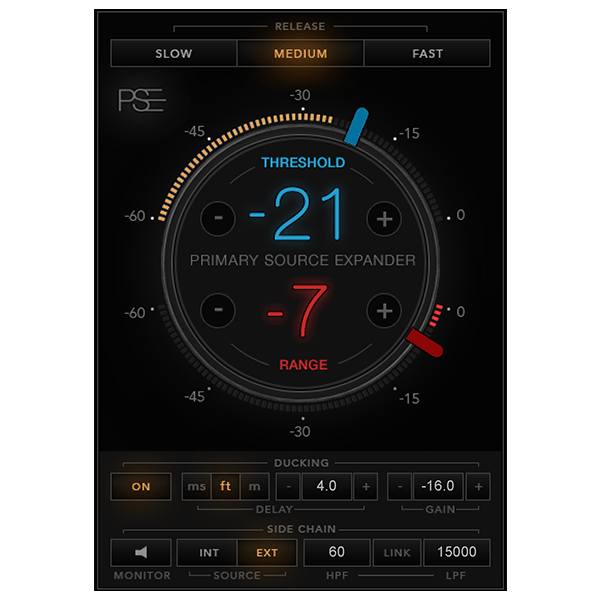

Reduce mic bleed in live shows-instantly

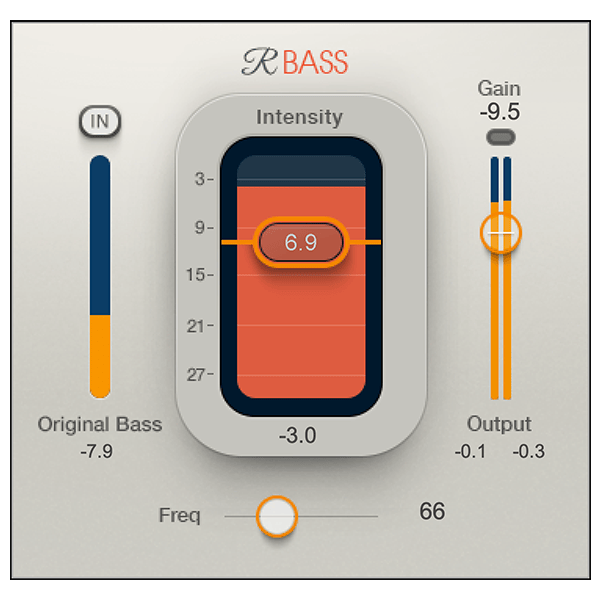

Rich bass enhancement for music and voice

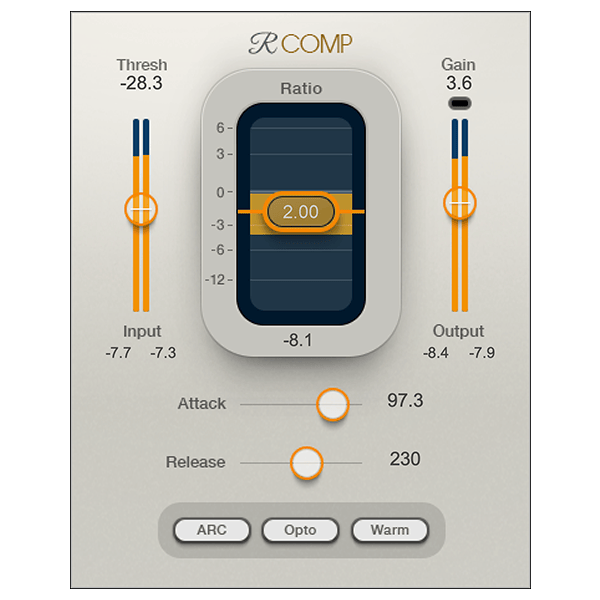

Classic, multi-application compressor and expander

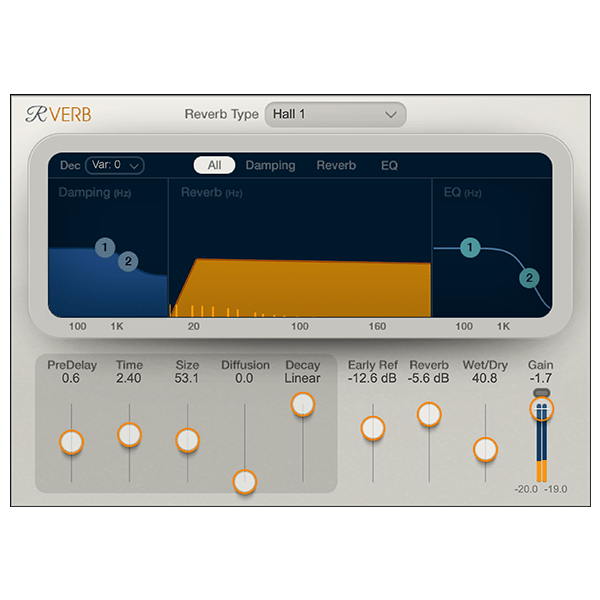

Smooth algorithmic reverb, 12 reverb types, 265 presets

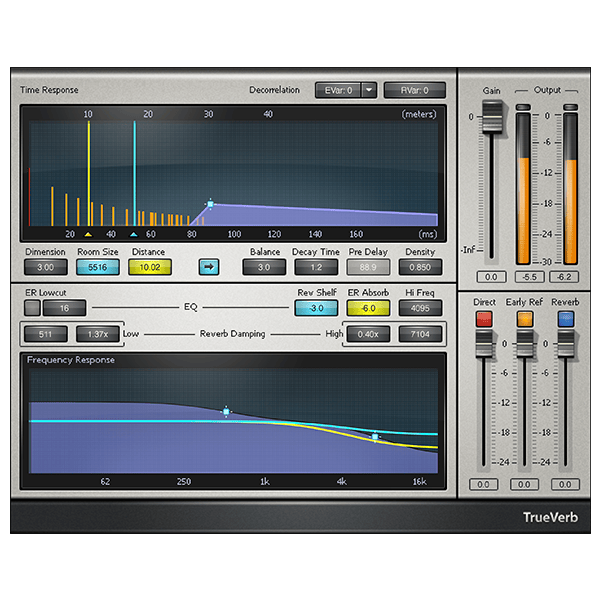

Lush reverb with detailed control over early reflections

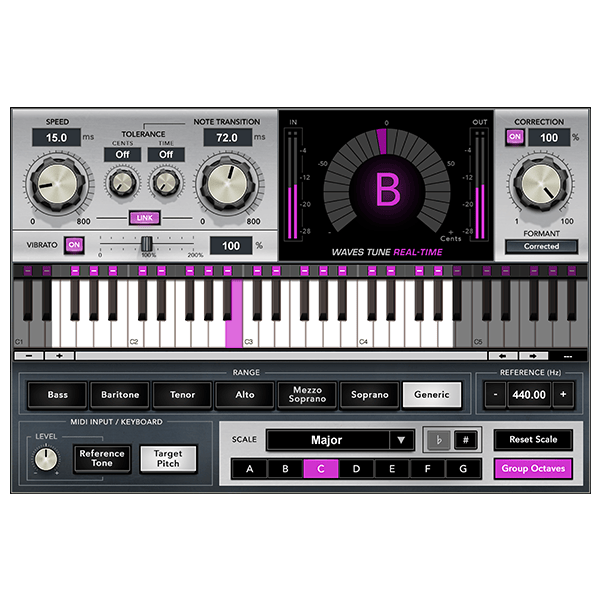

Instant vocal pitch correction, in the studio or live

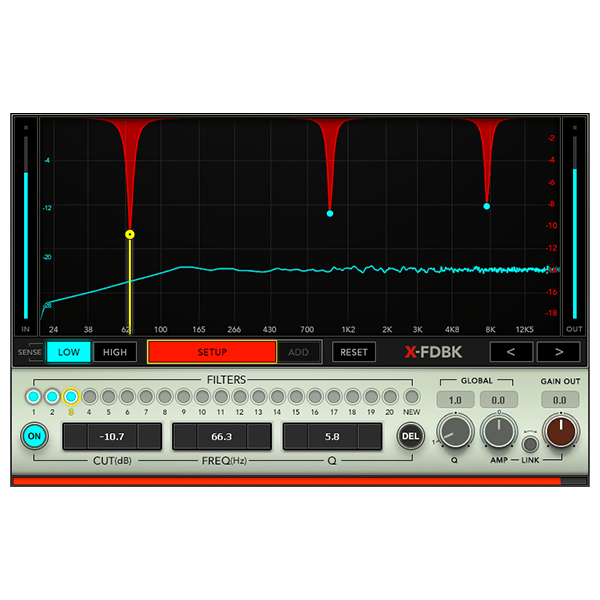

Automatic feedback elimination for clearer live sound

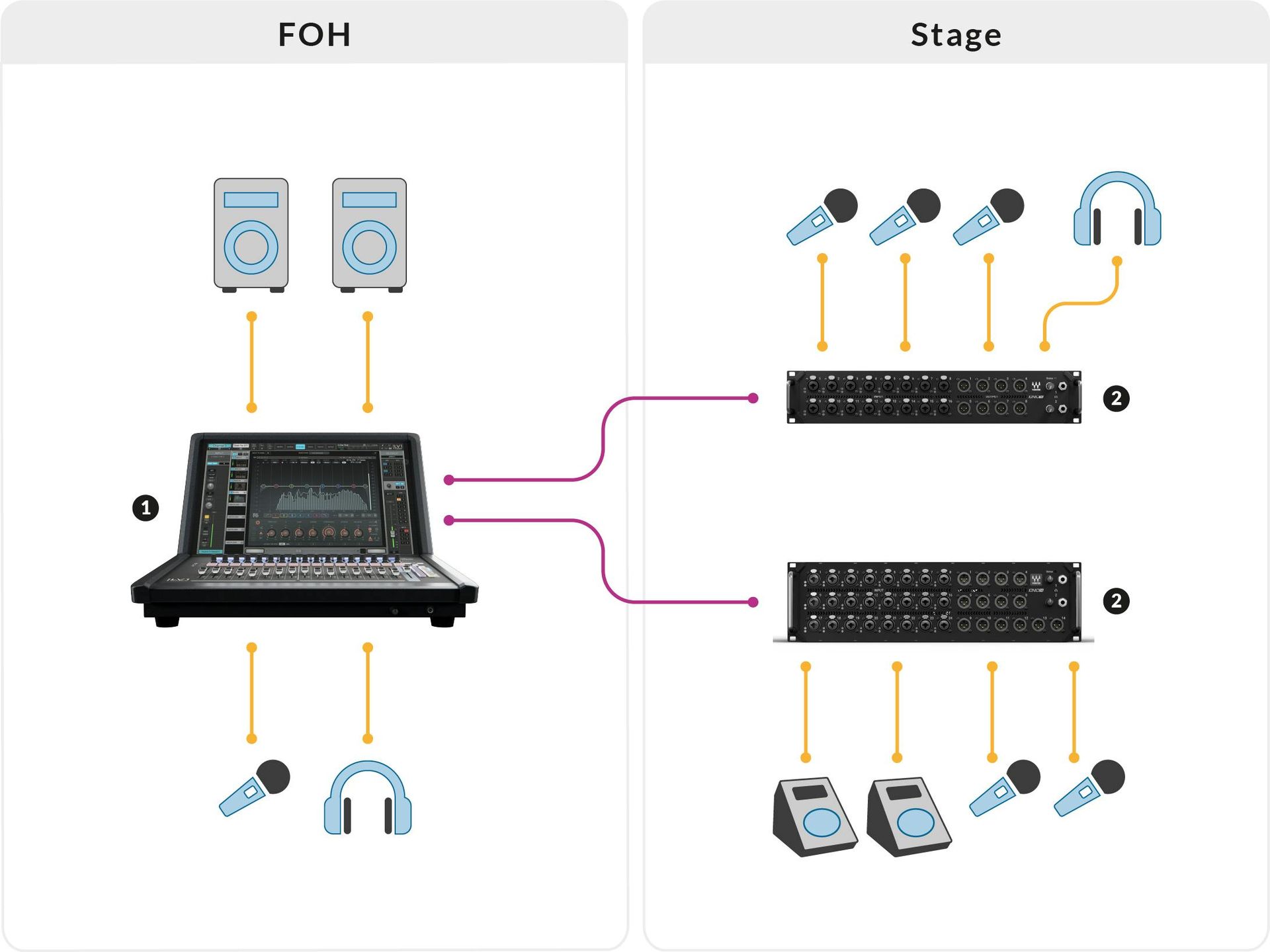

This is a straightforward small/medium venue setup, where the FOH engineer handles both the PA mix and Monitor sends. IONIC stageboxes complete the IO on stage with two cable runs.

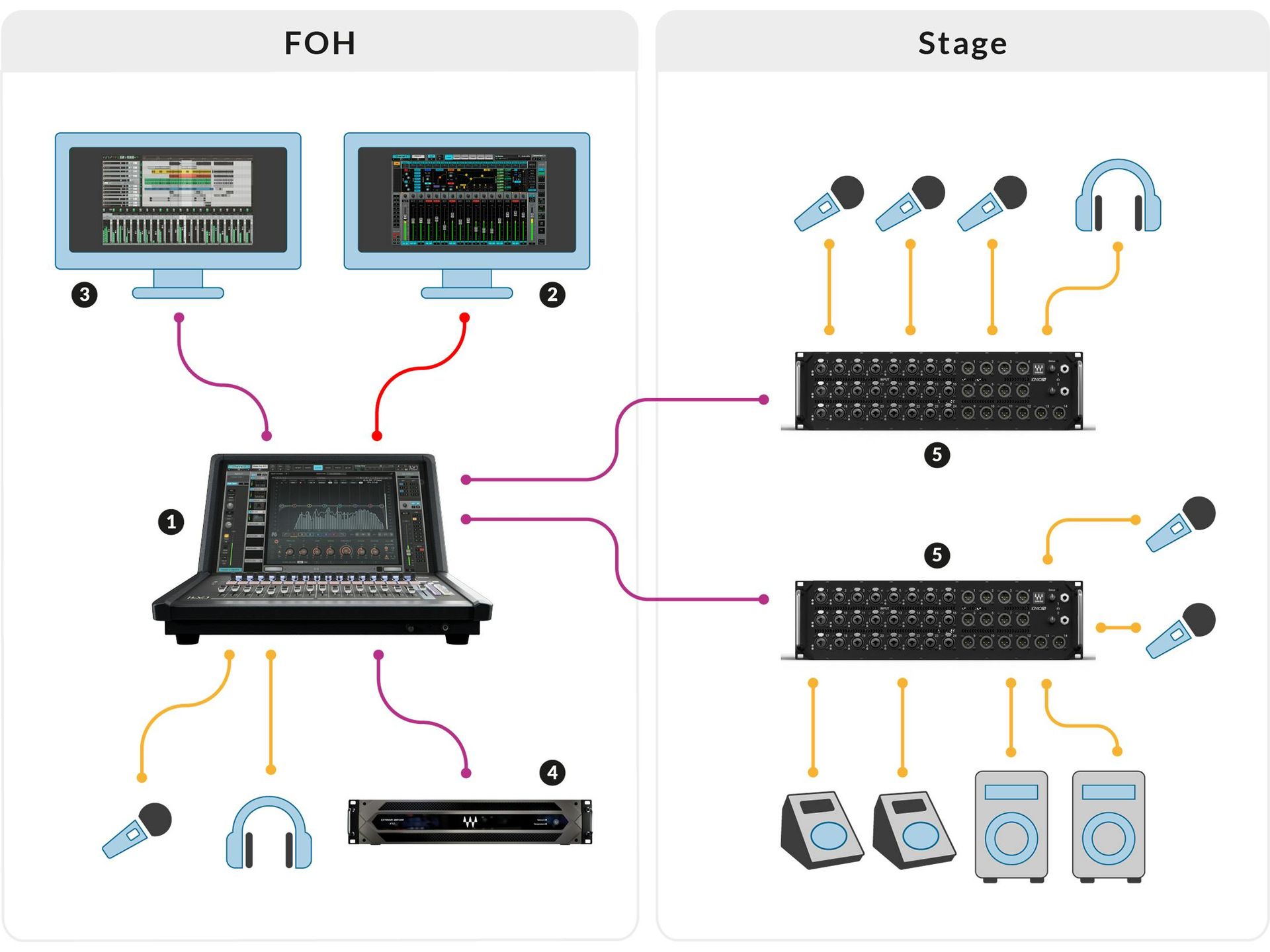

In this example, a medium event or venue requires 48 Inputs on stage. A single eMotion LV1 Classic console is utilized with optional additions: a secondary touchscreen for more control, and a Titan DSP server for extra plugin processing.

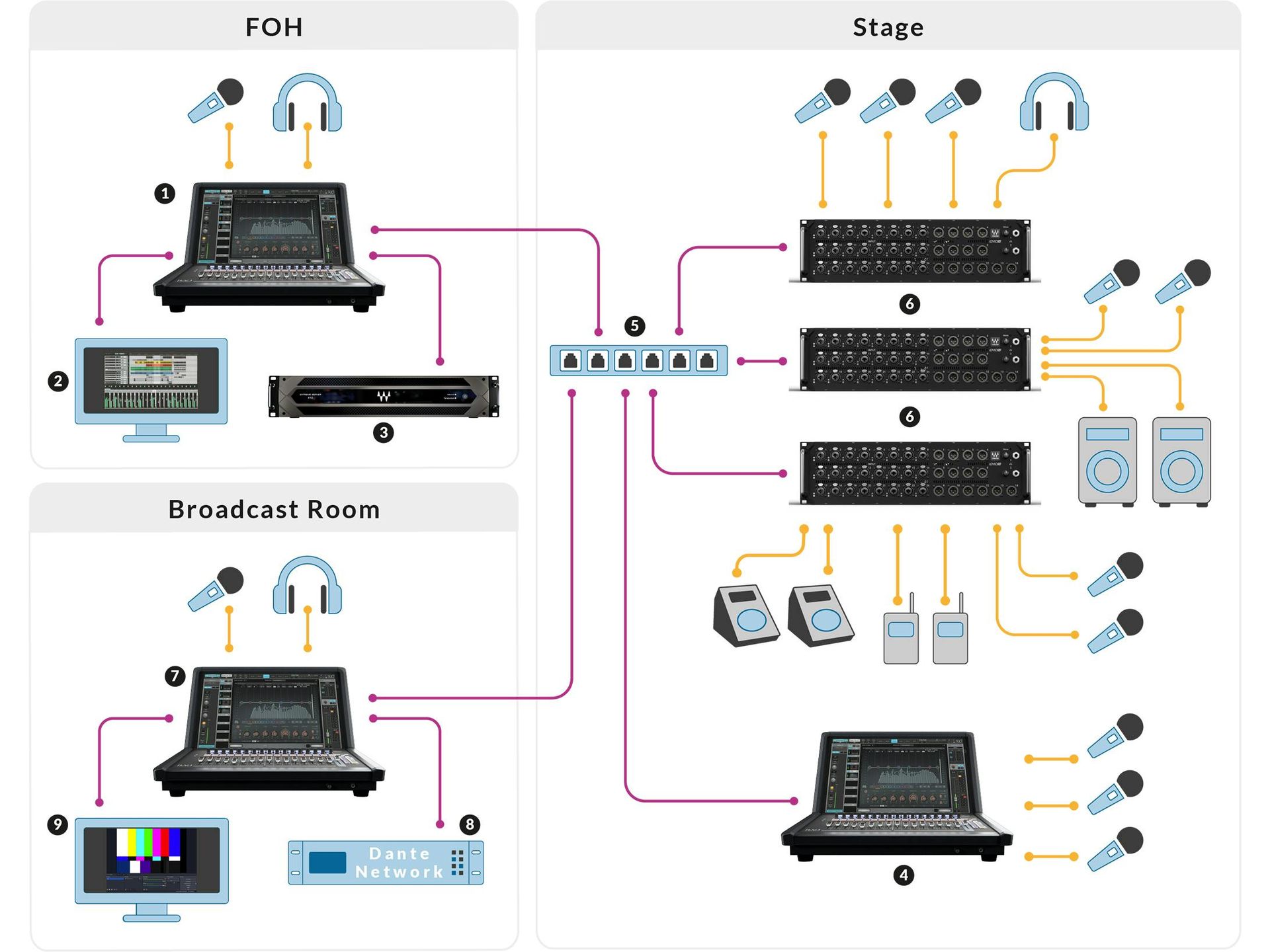

In this setup, three eMotion LV1 Classic consoles are deployed at FOH, on stage, and in a broadcast room, to provide complete coverage for an event being performed at the venue but also streamed or broadcasted live.

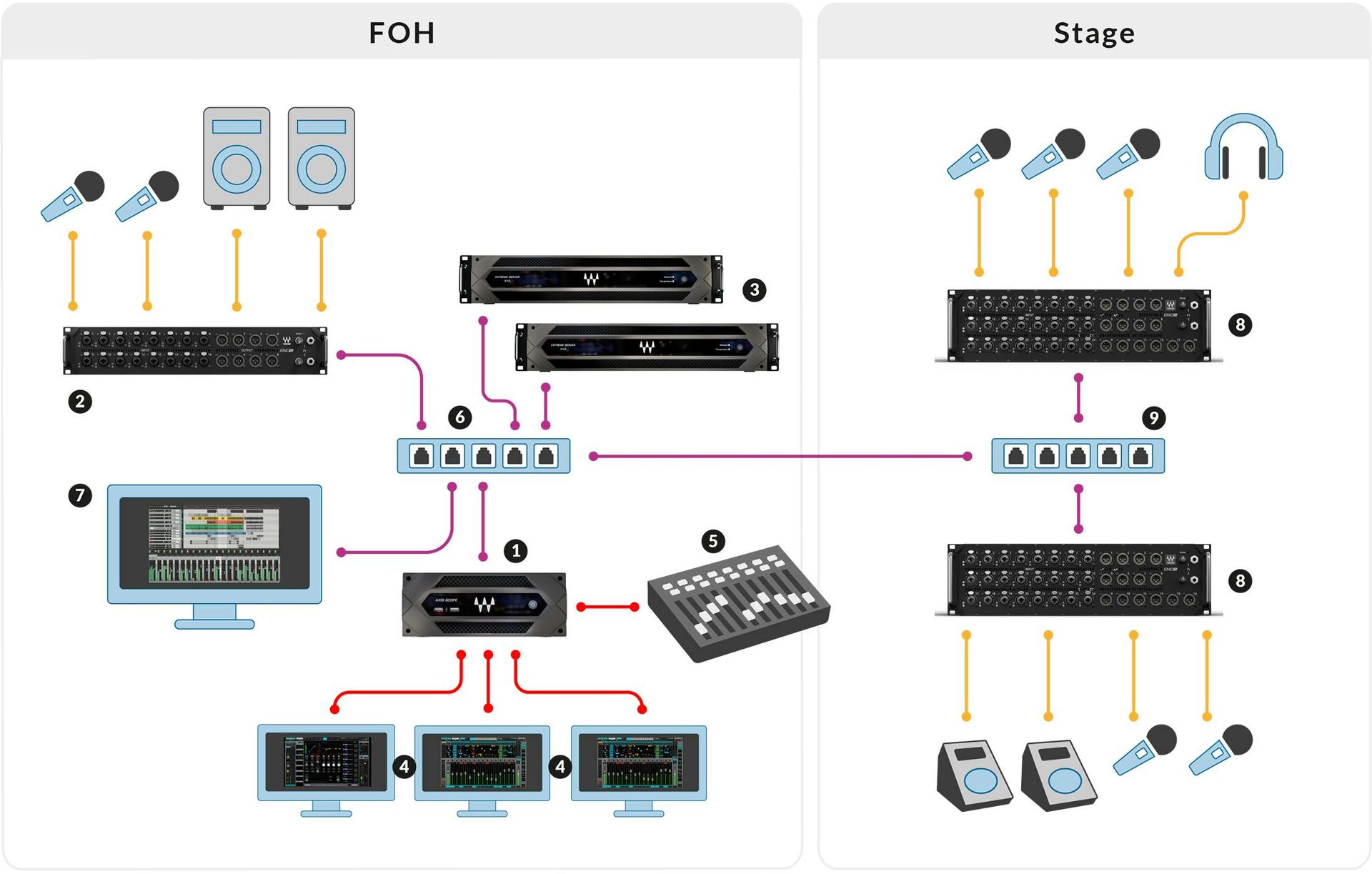

Alongside the eMotion LV1 Classic console, LV1 systems can also be configured in a modular fashion. In such modular systems, the LV1 mixer software runs on a dedicated computer that connects to several components for I/O and DSP processing, using the Waves SoundGrid network.
Expansion paths for LV1 systems across channel count, stage I/O, DSP load, control surfaces, network interfaces, plugins and monitoring.
Expand from 64 to 80 channels for larger input counts and bus structures.
Choose SoundGrid I/O by stage input count, installation location and cabling needs.

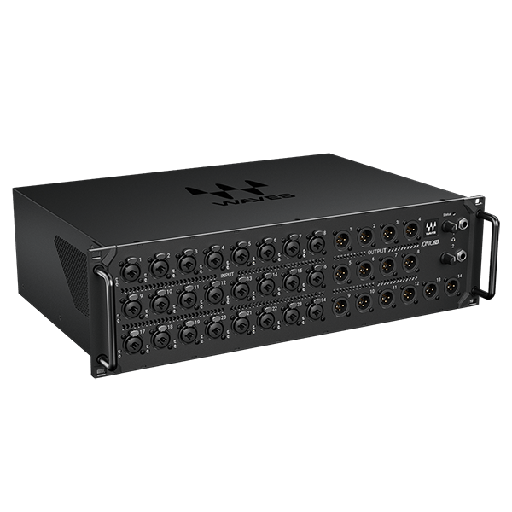

Waves IONIC 2424 Waves Signature Preamps for premium stage I/O expansion.
View Product

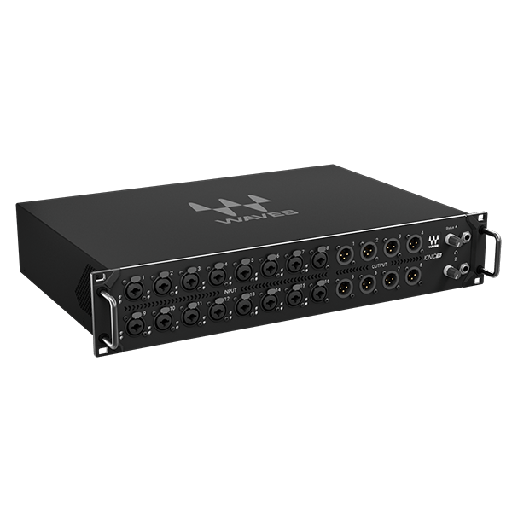

Waves IONIC 1616 Waves Signature Preamps for compact stage or local I/O.
View Product

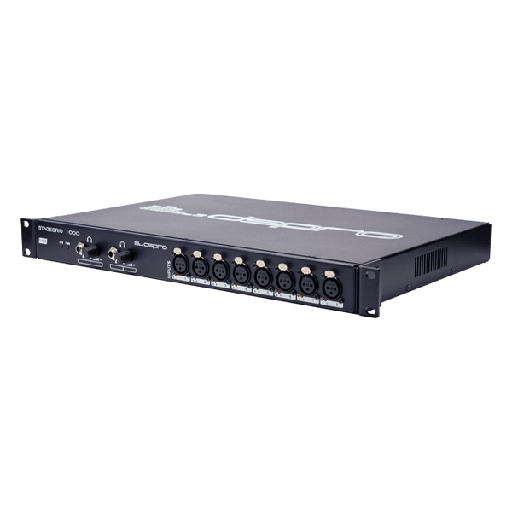

Waves DSPRO StageGrid 1000用于 SoundGrid 网络系统的 舞台接口箱 选项。
View Product

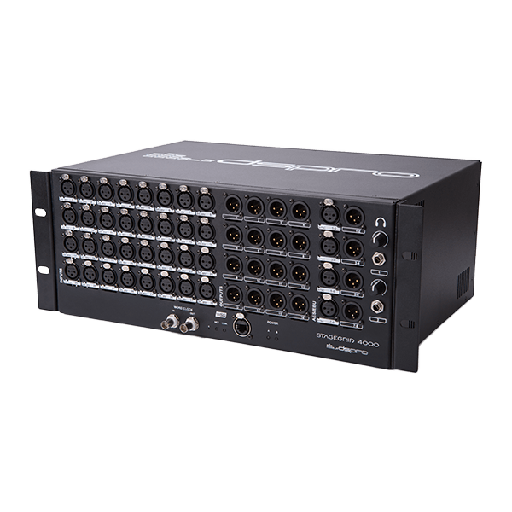

Waves DSPRO StageGrid 4000Higher-scale StageGrid I/O option for larger systems.
View ProductAdd SoundGrid processing power based on plugin load, redundancy and system scale.

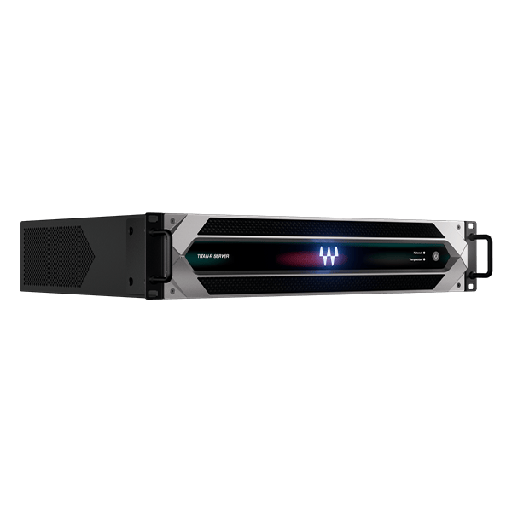

Waves Titan-R Server带冗余能力的高性能 SoundGrid DSP 服务器。
View Product

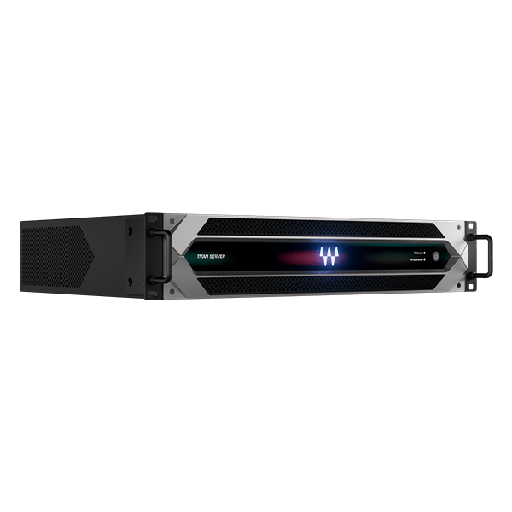

Waves Titan ServerHigh-performance DSP expansion for large live plugin workloads.
View Product

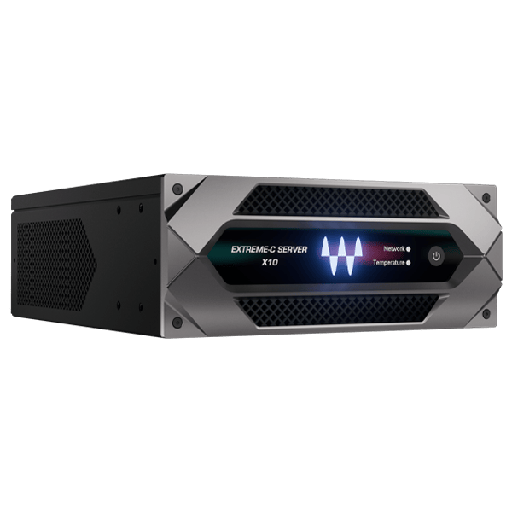

Waves Extreme Server-C Half RackHalf-rack SoundGrid DSP for added plugin processing power.
View Product

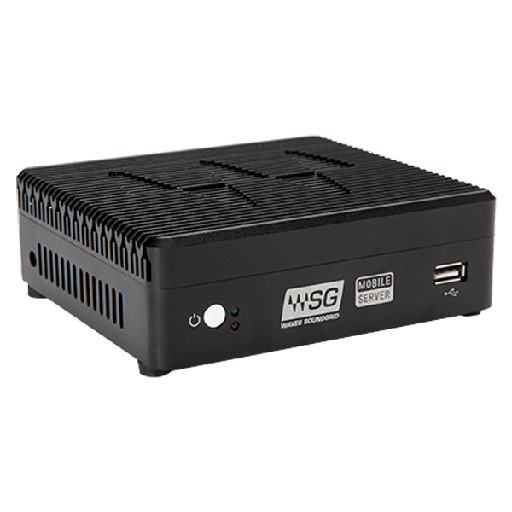

Waves Mobile ServerPortable SoundGrid DSP for mobile systems and compact expansion.

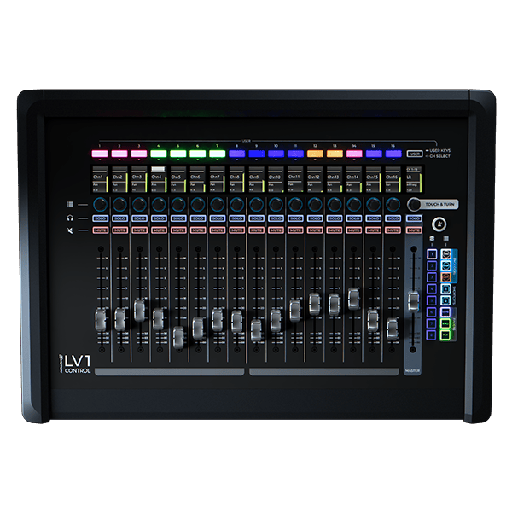

View ProductCurrent tactile control expansion is focused on LV1 Control.
Connect LV1 / SoundGrid systems to Dante, MADI and common live audio networks.
Extend live processing, SuperRack workflows and LV1 monitoring capabilities.
集中展示 LV1 Classic 介绍、80 通道扩展、快速入门，以及真实巡演和 FOH 工作流案例。
FeaturedeMotion LV1 Console - Now 80 Channels

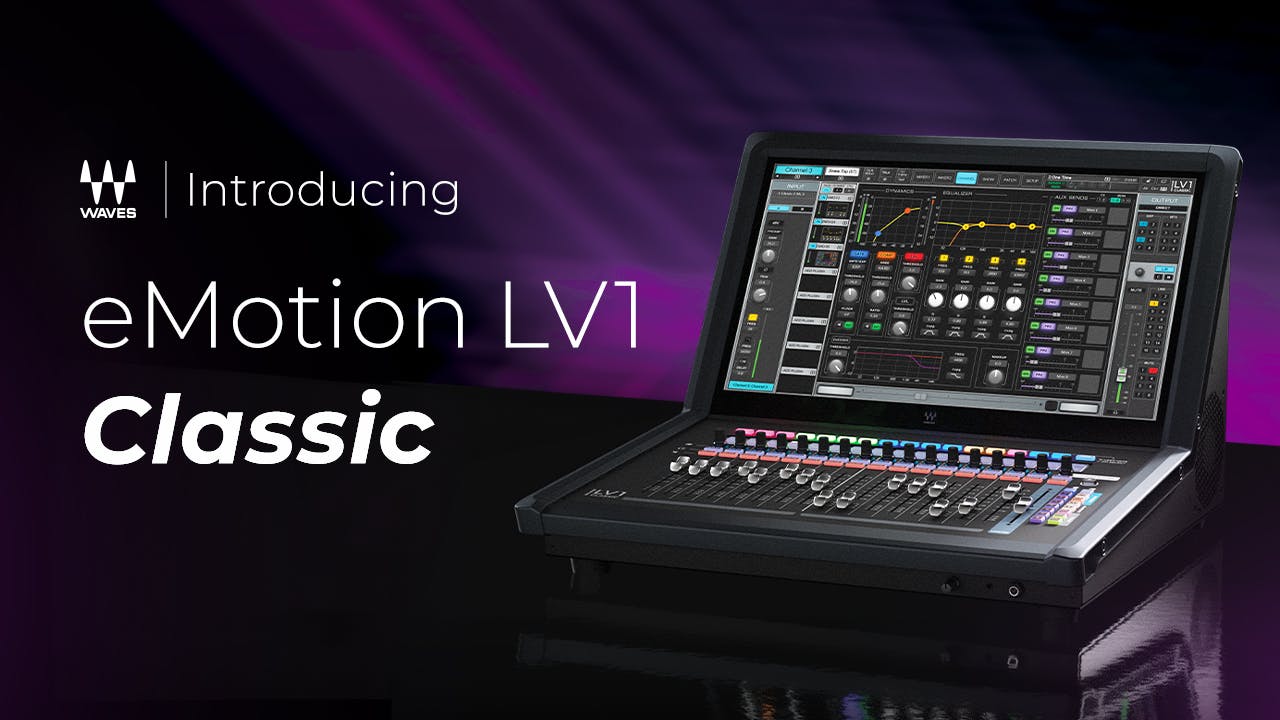

FeaturedIntroducing the eMotion LV1 Classic Live Mixing Console
精选LV1 v16 与 80-Channel 调音台 Expansion 新功能
FeaturedMixing Bruce Dickinson Live: Pooch Van Druten | LV1 Classic
FeaturedBehind the Live Mix of Young the Giant - LV1 Classic on Tour
FeaturedMixing Pitbull Live 2025 - LV1 Classic
精选eMotion LV1 Classic 快速入门
FeaturedLV1 Classic Console Unboxing - FOH Engineer Wil Madera (Pitbull)
FeaturedMixing FOH & Monitors for Don Toliver - LV1 Classic
FeaturedeMotion LV1 Classic - First Look with Ken Pooch Van Druten
FeaturedLV1 Classic Vocal & Master Chains by Pitbull FOH Wil Madera
FeaturedeMotion LV1 Classic: Behind the Scenes
FeaturedeMotion LV1 Classic - Console Test Drive with John Buitrago
FeaturedTransitioning to LV1 Classic: FOH Engineer Lloyd Williams
Waves eMotion LV1 80-Channel Expansion
Waves eMotion LV1 Control

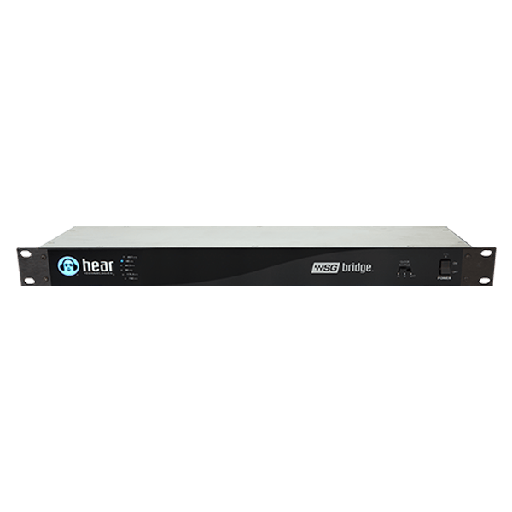

Waves Hear Technologies WSG Bridge for Dante
Waves SuperRack LiveBox Dante

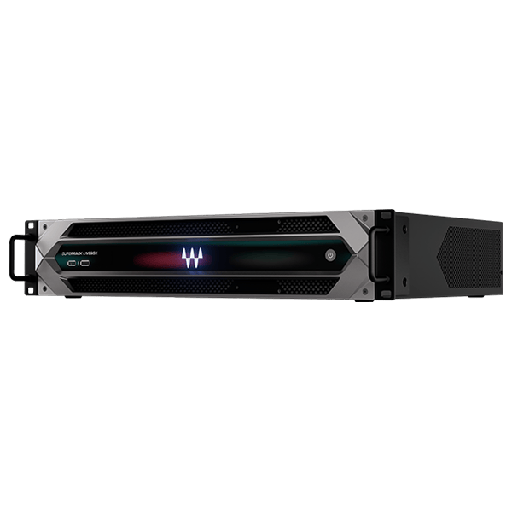

Waves SuperRack LiveBox MADI
